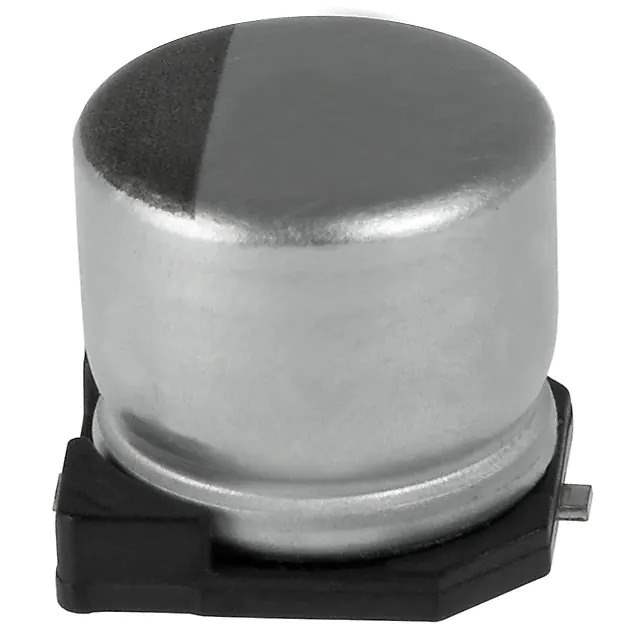

EMZA250ARA470MF61G Real Image
Same model may have multiple batches, images only for reference.

EMZA250ARA470MF61G

Part No EMZA250ARA470MF61G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 96 mA @ 120 Hz
Ripple Current @ High Frequency 240 mA @ 100 kHz
Impedance 360 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1111432-EMZA250ARA470MF61G
Ultra Librarian 3D Model Ultra Librarian EMZA250ARA470MF61G CAD Model

Description

The 1111432-EMZA250ARA470MF61G is an aluminum electrolytic capacitor from the Alchip™- MZA series.

  • Capacitance: 47µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Temperature Range: -55°C to 105°C
  • Application: automotive applications
  • Package: radial, can - SMD
  • Mounting: surface mountable
  • Product Status: active
  • Manufacturer: United Chemi-Con
  • AEC-Q200: meets the AEC-Q200 standard
  • Ripple Current (Low Frequency): 96mA @ 120Hz
  • Ripple Current (High Frequency): 240mA @ 100kHz
