Same model may have multiple batches, images only for reference.

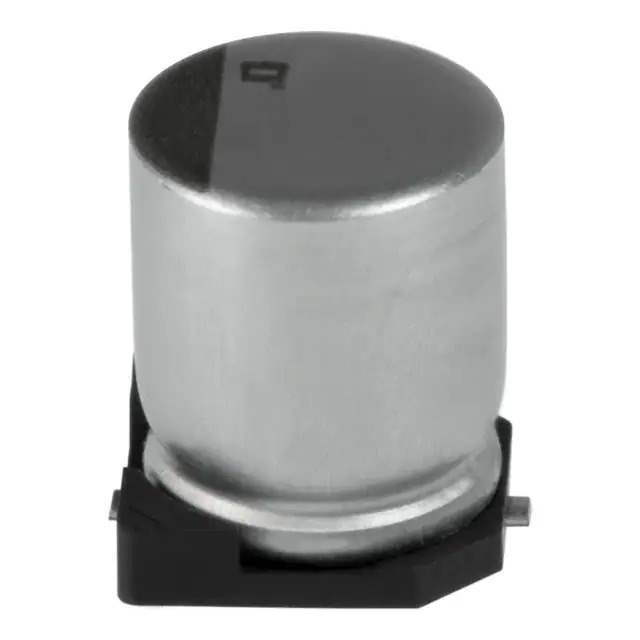

EMVY500ARA470MF80G Real Image
Same model may have multiple batches, images only for reference.

EMVY500ARA470MF80G

Part No EMVY500ARA470MF80G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 50V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVY
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 68 mA @ 120 Hz
Ripple Current @ High Frequency 170 mA @ 100 kHz
Impedance 600 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1128350-EMVY500ARA470MF80G
Ultra Librarian 3D Model Ultra Librarian EMVY500ARA470MF80G CAD Model

Description

The 1128350-EMVY500ARA470MF80G is a surface mount aluminum electrolytic capacitor from the Alchip™- MVY series.

  • Series: Alchip™- MVY
  • Manufacturer: United Chemi-Con
  • Application: General Purpose
  • Capacitance: 47 μF
  • Tolerance: ±20%
  • Rated Voltage: 50 V
  • Diameter: 0.248 inches (6.30mm)
  • Height: 0.303 inches (7.70mm)
  • Impedance: 600 mOhms
  • Ripple Current (Low Frequency): 68 mA @ 120 Hz
  • Ripple Current (High Frequency): 170 mA @ 100 kHz
  • Package: Surface Mount
  • Surface Mount Land Size: 0.260 inches x 0.260 inches (6.60mm x 6.60mm)
  • Operating Temperature Range: -55°C to 105°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Active
