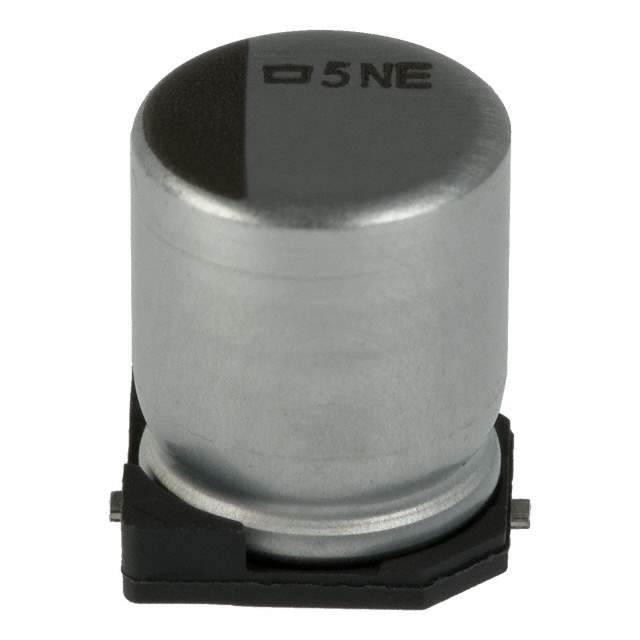

EMVE160ADA101MF55G Real Image
Same model may have multiple batches, images only for reference.

EMVE160ADA101MF55G

Part No EMVE160ADA101MF55G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVE
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 69 mA @ 120 Hz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.205" (5.20mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 565-2204-6,565-2204-1,565-2204-2,Q7675539
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307282-EMVE160ADA101MF55G
Ultra Librarian 3D Model Ultra Librarian EMVE160ADA101MF55G CAD Model

Description

The Alchip™- MVE series from United Chemi-Con offers a high-quality aluminum electrolytic capacitor that is suitable for general-purpose applications.

  • Capacitance: 100 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): Not specified
  • Package: Radial, can - SMD type
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height: 0.205" (5.20mm) (Maximum)
  • Lifetime: 1000 Hrs @ 105°C
  • Operating Temperature Range: -40°C to 105°C
  • Win Source Part Number: 1307282-EMVE160ADA101MF55G
