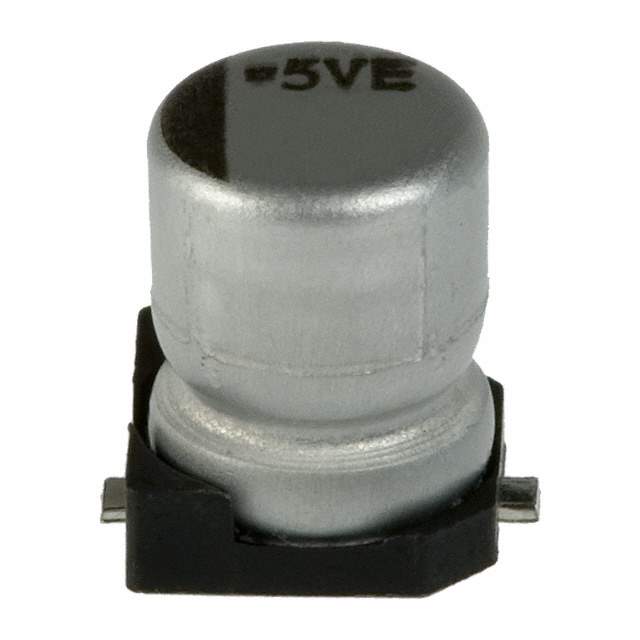

EMVE160ADA100MD55G Real Image
Same model may have multiple batches, images only for reference.

EMVE160ADA100MD55G

Part No EMVE160ADA100MD55G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 16V SMD / 10 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVE
Package Tape & Reel
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 17 mA @ 120 Hz
Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.205" (5.20mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2201-6,Q3720909,565-2201-2,565-2201-1
Standard Package 2,000
Win Source Part Number 1167485-EMVE160ADA100MD55G
Ultra Librarian 3D Model Ultra Librarian EMVE160ADA100MD55G CAD Model

Description

The United Chemi-Con capacitor is a high-quality aluminum electrolytic capacitor with a capacitance of 10 µF and a voltage rating of 16 V. It has a tolerance of ±20% and an ESR (Equivalent Series Resistance) of - @ a low frequency and a ripple current of 17 mA @ 120 Hz. The Win Source Part Number for this capacitor is 1167485-EMVE160ADA100MD55G. It is part of the Alchip™- MVE series and is designed for use in general purpose applications. This capacitor is surface mountable and comes in a radial, can - SMD package.
