Same model may have multiple batches, images only for reference.

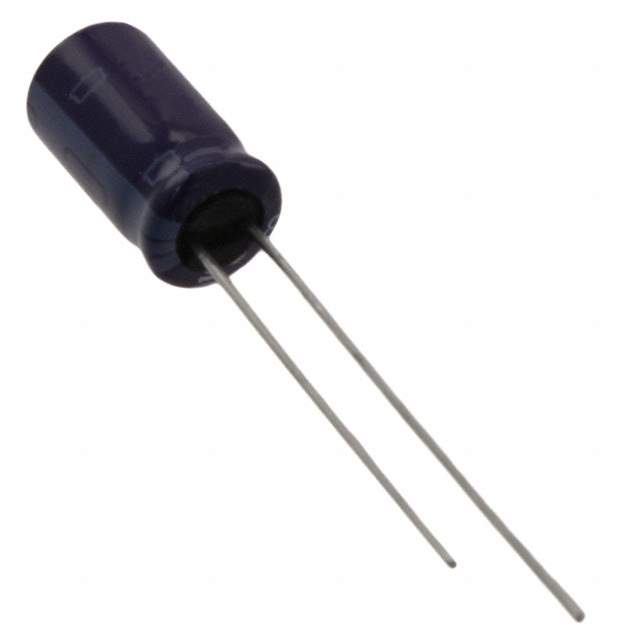

ELXZ630ELL220MFB5D Real Image
Same model may have multiple batches, images only for reference.

ELXZ630ELL220MFB5D

Part No ELXZ630ELL220MFB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 63V RADIAL / 22 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer United Chemi-Con
Packaging Bulk
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 96 mA @ 120 Hz
Ripple Current @ High Frequency 240 mA @ 100 kHz
Impedance 1 Ohms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 565-2041
Standard Package 2,000
Win Source Part Number 1331021-ELXZ630ELL220MFB5D
Ultra Librarian 3D Model Ultra Librarian ELXZ630ELL220MFB5D CAD Model

Description

The ELXZ630ELL220MFB5D is an aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Capacitance: 22 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • AEC-Q200: Rated
  • Case/Package: Radial, can
  • Polarized: Yes
  • Ripple Current: 96 mA @ 120 Hz and 240 mA @ 100 kHz
