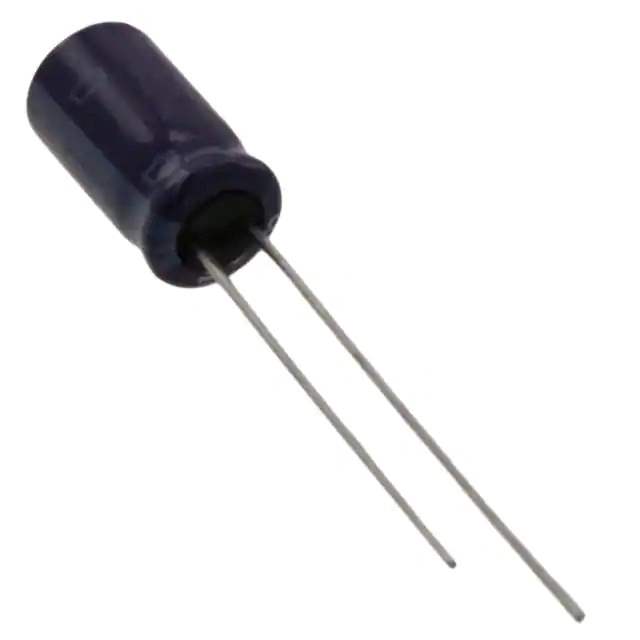

ELXZ100ELL122MJ20S Real Image
Same model may have multiple batches, images only for reference.

ELXZ100ELL122MJ20S

Part No ELXZ100ELL122MJ20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1200UF 20% 10V RADIAL / 1200 μF 10 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXZ
Package Bulk
Product Status Active
Capacitance 1200 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 732 mA @ 120 Hz
Ripple Current @ High Frequency 1.22 A @ 100 kHz
Impedance 52 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 870385-ELXZ100ELL122MJ20S
Ultra Librarian 3D Model Ultra Librarian ELXZ100ELL122MJ20S CAD Model

Description

The LXZ series aluminum electrolytic capacitor with a capacitance of 1200 µF and a voltage rating of 10 V is designed for automotive applications.

  • Series: LXZ
  • Capacitance: 1200 µF
  • Voltage: 10 V
  • Application: Automotive
  • Type: Polarized
  • Package: Radial, Can
  • Diameter: 0.394" (10.00mm)
  • Height: 0.846" (21.50mm) seated
  • Lead Spacing: 0.197" (5.00mm)
  • Mounting Type: Through Hole
  • Impedance: 52 mOhms
  • Lifetime: 5000 hours @ 105°C
  • Certification: AEC-Q200
  • Tolerance: ±20%
  • Manufacturer: United Chemi-Con
  • Status: Active
