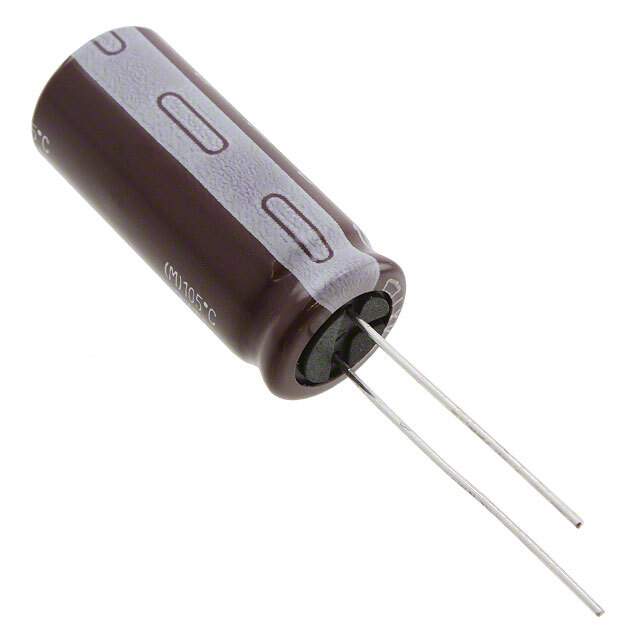

ELXV350ELL561MJ30S Real Image
Same model may have multiple batches, images only for reference.

ELXV350ELL561MJ30S

Part No ELXV350ELL561MJ30S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 35V RADIAL / 560 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXV
Package Bulk
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 725 mA @ 120 Hz
Ripple Current @ High Frequency 1.45 A @ 100 kHz
Impedance 44 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.240" (31.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339086-ELXV350ELL561MJ30S
Ultra Librarian 3D Model Ultra Librarian ELXV350ELL561MJ30S CAD Model

Description

The United Chemi-Con LXV series aluminum electrolytic capacitor is a polarized capacitor designed for use in automotive applications.

  • Capacitance: 560 µF
  • Voltage Rating: 35 V
  • ESR: not specified
  • Impedance: 44 mOhms
  • Package: radial, can
  • Mounting Type: through hole
  • Diameter: 0.394" (10.00mm)
  • Height Seated: 1.240" (31.50mm)
  • Lifetime: 3000 Hrs @ 105°C
  • Temperature Range: -55°C to 105°C
  • Package Quantity: 1000
