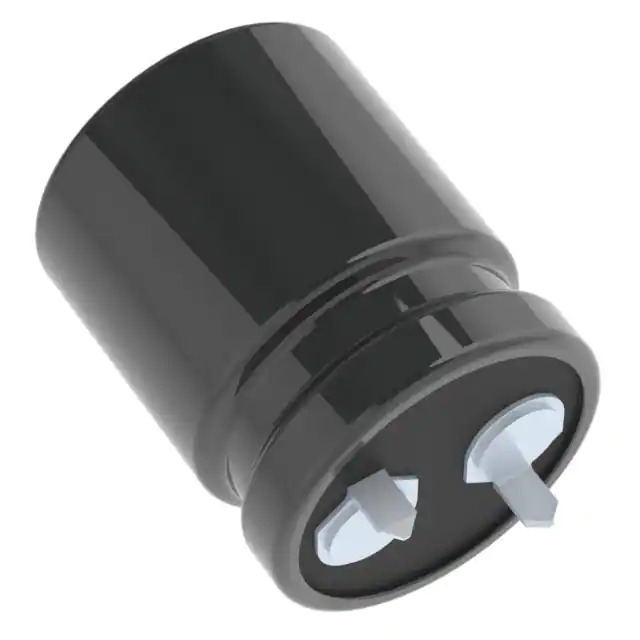

ELXQ401VSN101MP25S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXQ401VSN101MP25S

Part No ELXQ401VSN101MP25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 400V SNAP / 100 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXQ
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 660 mA @ 120 Hz
Ripple Current @ High Frequency 943.8 mA @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360753-ELXQ401VSN101MP25S
Ultra Librarian 3D Model Ultra Librarian ELXQ401VSN101MP25S CAD Model

Description

The LXQ series aluminum electrolytic capacitor is a high-performance component manufactured by United Chemi-Con.

  • Application: General-Purpose
  • Capacitance: 100 μF
  • Voltage Rating: 400 V
  • Temperature Range: -25°C to 105°C
  • Ripple Current @ 120 Hz: 660 mA
  • Ripple Current @ 50 kHz: 943.8 mA
  • Package: Radial, Can - Snap-In
  • Mounting Type: Through-Hole
  • Size: 0.866" diameter and 1.063" height
  • Lifetime: 5000 hours @ 105°C
