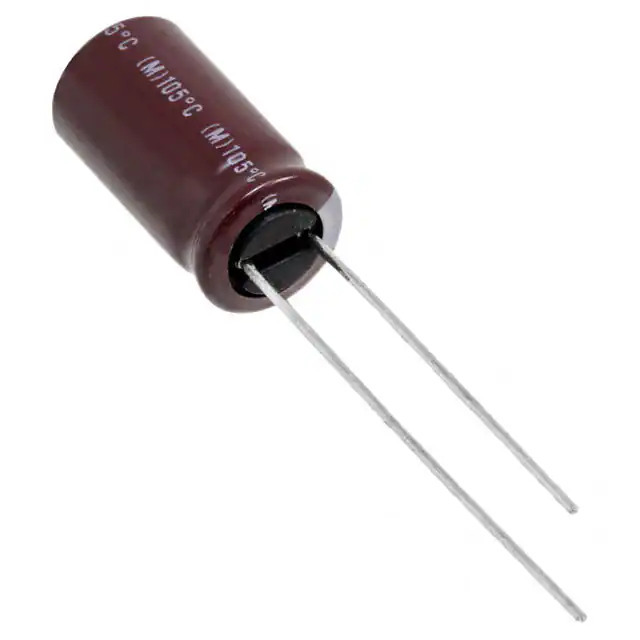

EKZN101ELL470MH15D United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZN101ELL470MH15D

Part No EKZN101ELL470MH15D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 100V RADIAL / 47 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZN
Package Bulk
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 9000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 312 mA @ 120 Hz
Ripple Current @ High Frequency 780 mA @ 100 kHz
Impedance 140 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358254-EKZN101ELL470MH15D
Ultra Librarian 3D Model Ultra Librarian EKZN101ELL470MH15D CAD Model

Description

The EKZN101ELL470MH15D is an aluminum electrolytic capacitor from United Chemi-Con's KZN series.

  • Manufacturer: United Chemi-Con
  • Series: KZN
  • Application: General Purpose
  • Capacitance: 47 µF
  • Voltage - Rated: 100 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): Not Specified
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Height - Seated (Max): 0.650" (16.50mm)
  • Ripple Current @ Low Frequency: 312 mA @ 120 Hz
  • Ripple Current @ High Frequency: 780 mA @ 100 kHz
  • Lifetime @ Temp.: 9000 Hrs @ 105°C
  • REACH SVHC Status: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
  • Impedance: 140 mOhms
