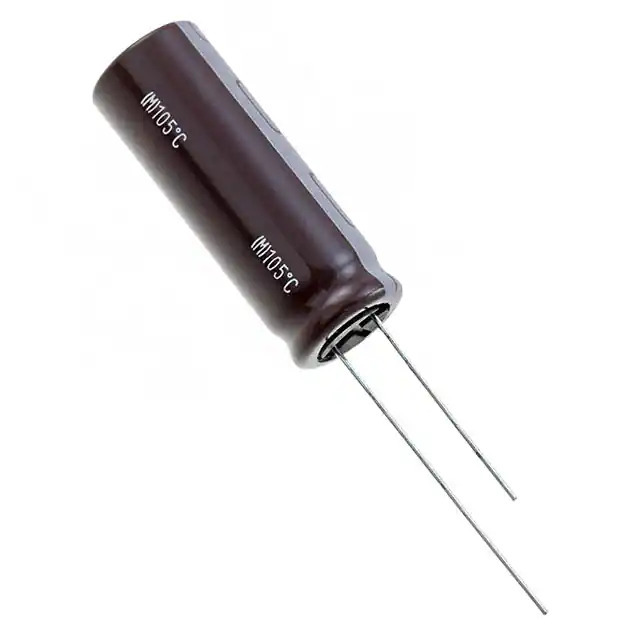

EKZN101ELL391MK35S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZN101ELL391MK35S

Part No EKZN101ELL391MK35S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 390UF 20% 100V RADIAL / 390 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Chemi-Con
Series KZN
Package Bulk
Product Status Active
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.3 A @ 120 Hz
Ripple Current @ High Frequency 2.6 A @ 100 kHz
Impedance 26 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.437" (36.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358219-EKZN101ELL391MK35S
Ultra Librarian 3D Model Ultra Librarian EKZN101ELL391MK35S CAD Model

Description

The EKZN101ELL391MK35S is an aluminum electrolytic capacitor from Chemi-Con's KZN series.

  • Capacitance: 390 µF
  • Voltage Rating: 100 V
  • Mounting Type: Through-hole
  • Package: Bulk
  • Diameter: 0.492 inches
  • Height: 1.437 inches
  • Temperature Range: -40°C to 105°C
  • Lifetime: 10000 hours @ 105°C
  • Tolerance: ±20%
  • Ripple Current: 1.3 A @ low frequency (120 Hz) and 2.6 A @ high frequency (100 kHz)
  • Lead Spacing: 0.197 inches (5.00mm)
