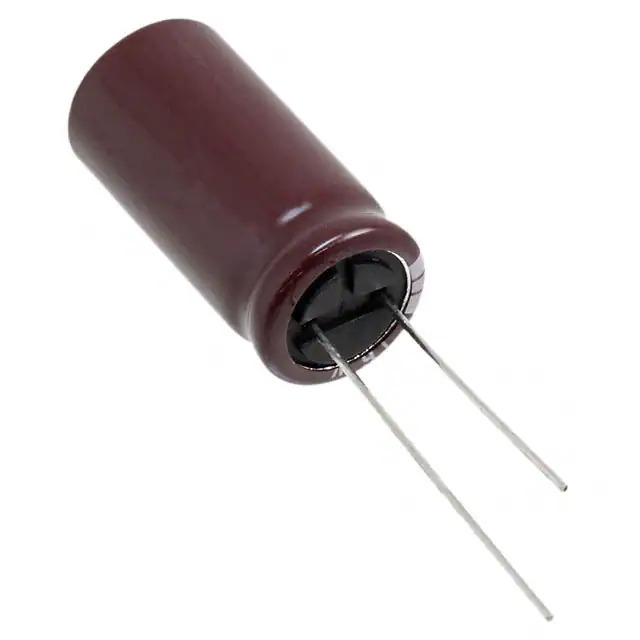

Same model may have multiple batches, images only for reference.

EKYB160ELL332MK25S

Name: EKYB160ELL332MK25S
Brand: United Chemi-Con
SKU: 1358245
Availability: InStock
Rating: 4.85 (53 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EKYB160ELL332MK25S
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Description	CAP ALUM 3300UF 20% 16V RADIAL / 3300 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	KYB
Package	Bulk
Product Status	Active
Capacitance	3300 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.8975 A @ 120 Hz
Ripple Current @ High Frequency	2.53 A @ 100 kHz
Impedance	24 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358245-EKYB160ELL332MK25S
Ultra Librarian 3D Model	Ultra Librarian EKYB160ELL332MK25S CAD Model

Alternative Products

Description

The 1358245-EKYB160ELL332MK25S is an aluminum electrolytic capacitor from United Chemi-Con's KYB series.

Capacitance: 3300 μF
Voltage Rating: 16 V
Temperature Range: -40°C to 105°C
Application: General-Purpose
Ripple Current (Low Frequency): 1.8975 A @ 120 Hz
Ripple Current (High Frequency): 2.53 A @ 100 kHz
Package: Radial, Can
Diameter: 0.492 inches (12.50 mm)
Height (Max): 1.043 inches (26.50 mm)
Mounting Type: Through-Hole
Lead Spacing: 0.197 inches (5.00 mm)
Lifetime: 10,000 hours @ 105°C
Polarization: Polarized
Impedance: 24 mOhms
Product Status: Active
REACH: Unaffected
