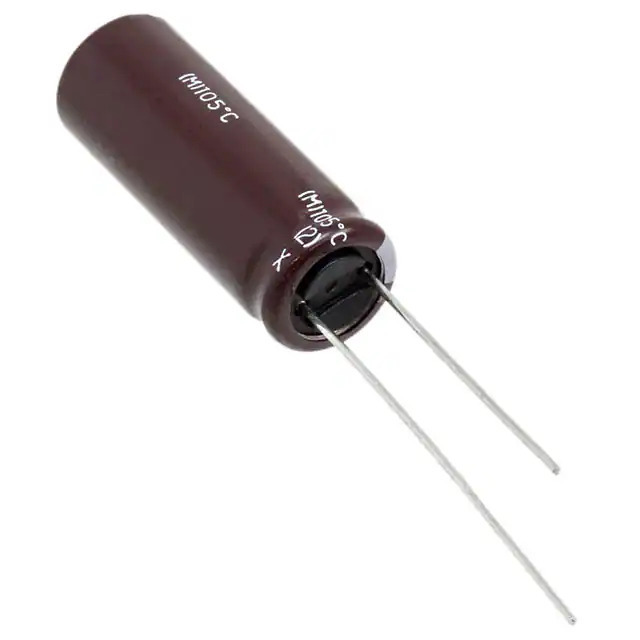

EKYB160ELL222MJ30S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKYB160ELL222MJ30S

Part No EKYB160ELL222MJ30S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 16V RADIAL / 2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KYB
Package Bulk
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.6725 A @ 120 Hz
Ripple Current @ High Frequency 2.23 A @ 100 kHz
Impedance 27 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.240" (31.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358012-EKYB160ELL222MJ30S
Ultra Librarian 3D Model Ultra Librarian EKYB160ELL222MJ30S CAD Model

Description

The 1358012-EKYB160ELL222MJ30S is an aluminum electrolytic capacitor from United Chemi-Con's KYB series from United Chemi-Con.

  • Series: KYB
  • Capacitance: 2200 µF
  • Tolerance: ±20%
  • Voltage: 16 V
  • Lifetime: 10000 hours @ 105°C
  • Ripple Current (120Hz): 1.6725 A
  • Ripple Current (100kHz): 2.23 A
  • Lead Spacing: 0.197" (5.00mm)
  • Diameter: 0.394" (10.00mm)
  • Height (Seated): 1.240" (31.50mm)
  • Mounting Type: Through-Hole
  • Packaging: Bulk
  • REACH: Unaffected
  • ECCN: EAR99
