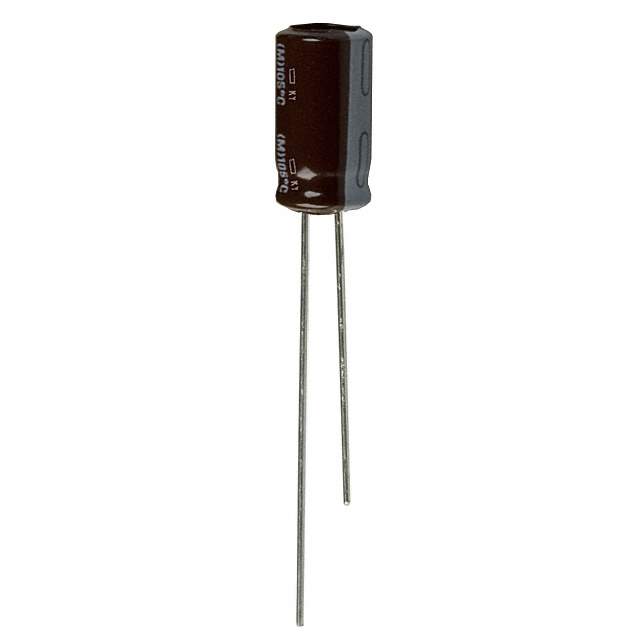

EKY-350ELL560MF11D Real Image
Same model may have multiple batches, images only for reference.

EKY-350ELL560MF11D

Part No EKY-350ELL560MF11D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 35V RADIAL / 56 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KY
Package Bulk
Product Status Obsolete
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 136 mA @ 120 Hz
Ripple Current @ High Frequency 340 mA @ 100 kHz
Impedance 220 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.433" (11.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339316-EKY-350ELL560MF11D
Ultra Librarian 3D Model Ultra Librarian EKY-350ELL560MF11D CAD Model

Description

The United Chemi-Con EKY-350ELL560MF11D is a through hole aluminum electrolytic capacitor with a capacitance of 56 µF and a voltage rating of 35 V.

  • Capacitance: 56 µF
  • Voltage - Rated: 35 V
  • Tolerance: ±20%
  • Application: General Purpose
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • ESR (Equivalent Series Resistance): Not Specified
  • Impedance: 220 mOhms
  • Package / Case: Radial, Can
  • Size / Dimension: 0.248" (6.30mm)
  • Height - Seated (Max): 0.433" (11.00mm)
  • Lead Spacing: 0.098" (2.50mm)
  • Ripple Current - Low Frequency: 136 mA @ 120 Hz
  • Ripple Current - High Frequency: 340 mA @ 100 kHz
  • Packaging: Bulk
  • Standard Package: 2000
