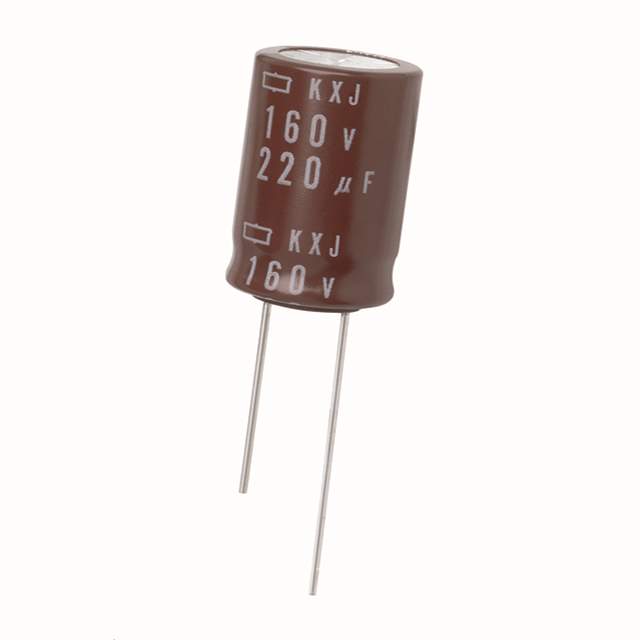

EKXJ161ELL221ML25S Real Image
Same model may have multiple batches, images only for reference.

EKXJ161ELL221ML25S

Part No EKXJ161ELL221ML25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 160V RADIAL / 220 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KXJ
Package Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 160 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 1.02 A @ 120 Hz
Ripple Current @ High Frequency 2.295 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 500
Win Source Part Number 971717-EKXJ161ELL221ML25S
Ultra Librarian 3D Model Ultra Librarian EKXJ161ELL221ML25S CAD Model

Description

This is a KXJ series aluminum electrolytic capacitor with a capacitance of 220 µF and a voltage rating of 160V.

  • Series: KXJ
  • Capacitance: 220 µF
  • Voltage Rating: 160V
  • Tolerance: ±20%
  • AEC-Q200: Rated
  • Ripple Current: 1.02 A @ 120 Hz and 2.295 A @ 100 kHz
  • Height: 1.043" (26.50mm) when seated
  • Diameter: 0.630" (16.00mm)
  • Mounting: Through-hole mountable
  • Package: Radial, can package
  • Operating Temperature Range: -40°C to 105°C
