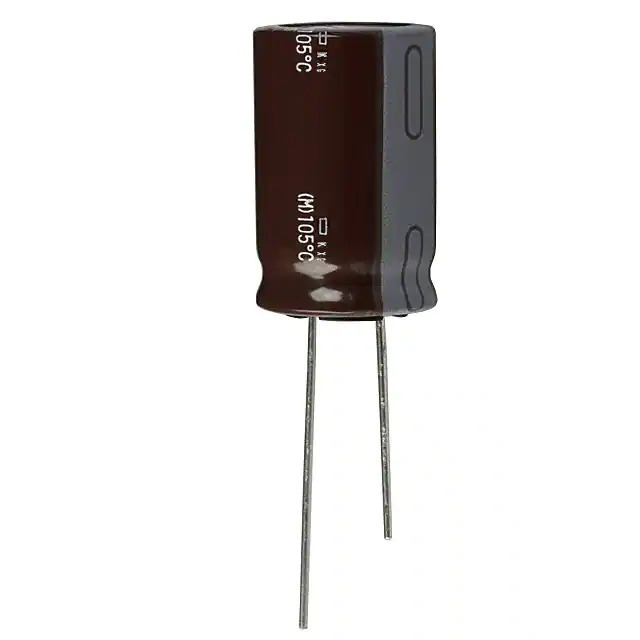

Same model may have multiple batches, images only for reference.

EKXG401ELL470ML25S

Name: EKXG401ELL470ML25S
Brand: United Chemi-Con
SKU: 1358178
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EKXG401ELL470ML25S
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 400V RADIAL / 47 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	KXG
Package	Bulk
Product Status	Active
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	400 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	470 mA @ 120 Hz
Ripple Current @ High Frequency	1.175 A @ 100 kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358178-EKXG401ELL470ML25S
Ultra Librarian 3D Model	Ultra Librarian EKXG401ELL470ML25S CAD Model

Alternative Products

Description

The EKXG401ELL470ML25S capacitor from United Chemi-Con is part of the KXG series, designed for general-purpose applications.

Capacitance: 47 µF
Tolerance: ±20%
Voltage - Rated: 400 V
Applications: General Purpose
Ripple Current @ Low Frequency: 470 mA @ 120 Hz
Ripple Current @ High Frequency: 1.175 A @ 100 kHz
Mounting Type: Through Hole
Package / Case: Radial, Can
Lead Spacing: 0.295" (7.50mm)
Size / Dimension: 0.630" Dia (16.00mm)
Height - Seated (Max): 0.984" (25.00mm)
Lifetime @ Temp.: 10000 Hrs @ 105°C
REACH Status: Unaffected
ECCN: EAR99
