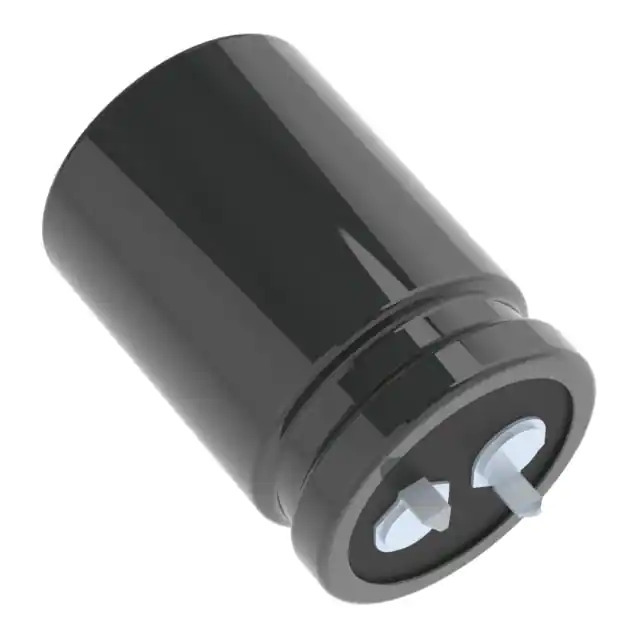

EKMM201VSN681MQ35S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKMM201VSN681MQ35S

Part No EKMM201VSN681MQ35S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 200V SNAP / 680 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMM
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.78 A @ 120 Hz
Ripple Current @ High Frequency 2.67 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.000" Dia (25.40mm)
Height - Seated (Max) 1.457" (37.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360727-EKMM201VSN681MQ35S
Ultra Librarian 3D Model Ultra Librarian EKMM201VSN681MQ35S CAD Model

Description

The 1360727-EKMM201VSN681MQ35S is a high-quality aluminum electrolytic capacitor from United Chemi-Con's KMM series.

  • Application: General-Purpose
  • Capacitance: 680 µF
  • Voltage Rating: 200 V
  • Temperature Range: -25°C to 105°C
  • Package: Snap-In, Radial Can
  • Mounting Type: Through Hole
  • Lifetime: 3000 hours @ 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.78 A
  • Ripple Current (High Frequency): 2.67 A
