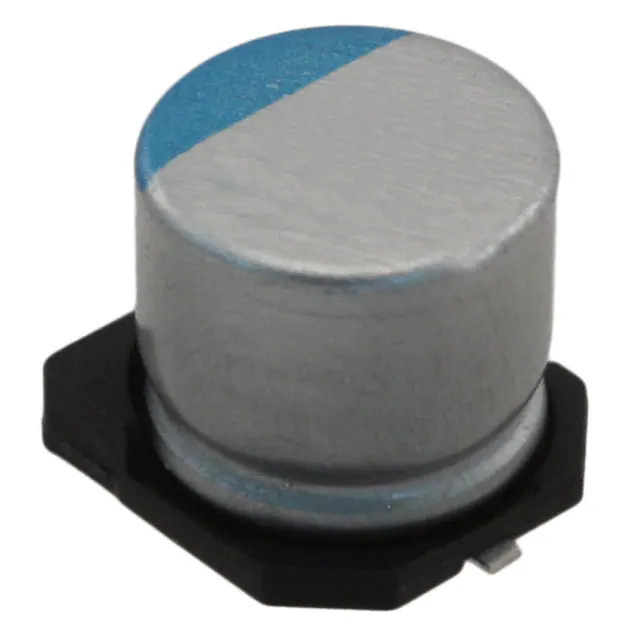

Same model may have multiple batches, images only for reference.
APXF6R3ARA561MH80G United Chemi-Con
Same model may have multiple batches, images only for reference.

APXF6R3ARA561MH80G

Part No APXF6R3ARA561MH80G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 6.3V SMD / 560 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 9mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Chemi-Con
Series NPCAP™-PXF
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 9mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 4.5 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359493-APXF6R3ARA561MH80G
Ultra Librarian 3D Model Ultra Librarian APXF6R3ARA561MH80G CAD Model

Description

The 1359493-APXF6R3ARA561MH80G is a polymer capacitor from Chemi-Con's NPCAP™-PXF series.

  • Series: NPCAP™-PXF
  • Applications: General Purpose
  • Capacitance: 560 µF
  • Voltage - Rated: 6.3 V
  • Operating Temperature: -55°C ~ 105°C
  • ESR (Equivalent Series Resistance): 9mOhm
  • Ripple Current @ Low Frequency: -
  • Ripple Current @ High Frequency: 4.5 A @ 100 kHz
  • Packaging: Tape & Reel (TR)
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Height - Seated (Max): 0.303" (7.70mm)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • REACH Status: REACH unaffected
  • ECCN: EAR99
