Same model may have multiple batches, images only for reference.

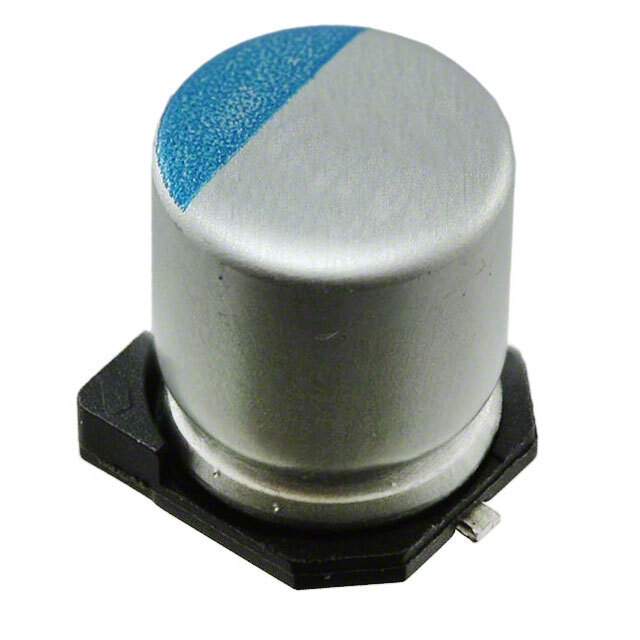

APXE160ARA101MF80G Real Image
Same model may have multiple batches, images only for reference.

APXE160ARA101MF80G

Part No APXE160ARA101MF80G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 100UF 20% 16V SMD / 100 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 24mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXE
Package Tape & Reel
Type Polymer
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 24mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 2.7 A @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-3210-1,565-3210-2,565-3210-6
Standard Package 900
Win Source Part Number 1045854-APXE160ARA101MF80G
Ultra Librarian 3D Model Ultra Librarian APXE160ARA101MF80G CAD Model

Description

The NPCAP™-PXE series from United Chemi-Con is a range of aluminum polymer capacitors designed for general purpose use. The APXE160ARA101MF80G capacitor has a capacitance of 100 µF, voltage rating of 16 V, and a tolerance of ±20%.

  • Mounting Type: SMD (SMT)
  • Package: radial, can - SMD
  • Ripple Current: 2.7 A @ 100 kHz
  • ESR (Equivalent Series Resistance): 24mOhm
  • Lifetime: 2000 hours @ 105°C
  • Polarized: Yes
  • Package Size: 0.248" Dia (6.30mm)
  • Height Seated: 0.303" (7.70mm)
