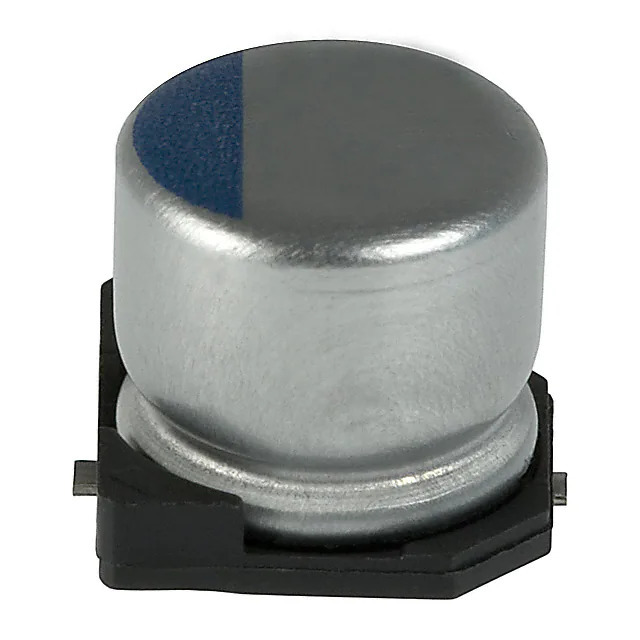

Same model may have multiple batches, images only for reference.
APXA200ARA220MF60G United Chemi-Con
Same model may have multiple batches, images only for reference.

APXA200ARA220MF60G

Part No APXA200ARA220MF60G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 20V SMD / 22 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 50mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXA
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 50mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 1.65 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359513-APXA200ARA220MF60G
Ultra Librarian 3D Model Ultra Librarian APXA200ARA220MF60G CAD Model

Description

The 1359513-APXA200ARA220MF60G is a high-quality aluminum polymer capacitor manufactured by United Chemi-Con. It belongs to the NPCAP™-PXA series and is designed for general-purpose applications.

  • Series: NPCAP™-PXA
  • Capacitance: 22 μF
  • Voltage Rating: 20 V
  • Operating Temperature: -55°C ~ 105°C
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.236" (6.00mm)
  • Lifetime @ Temp.: 15000 Hrs @ 105°C
  • Tolerance: ±20%
  • Ripple Current: 1.65 A @ 100 kHz
  • ESR (Equivalent Series Resistance): 50mOhm
