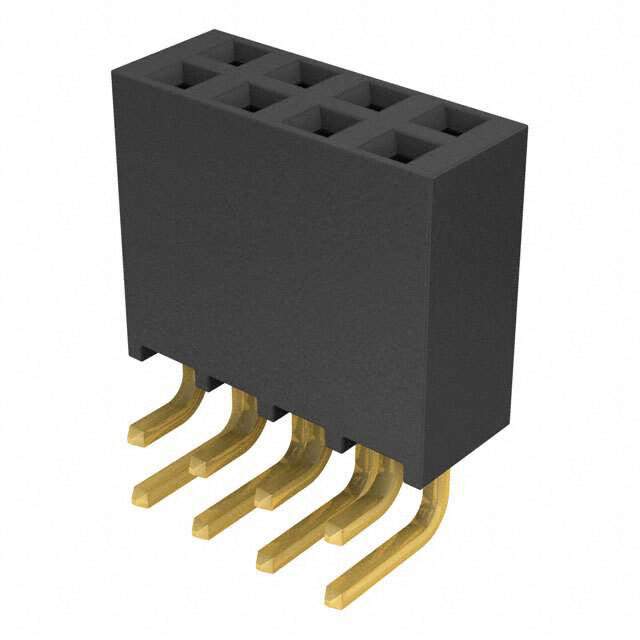

Same model may have multiple batches, images only for reference.

SSQ-104-02-S-D-RA

Name: SSQ-104-02-S-D-RA
Brand: Samtec Inc.
SKU: 1288934
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSQ-104-02-S-D-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSQ-104-02-S-D-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSQ
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.195" (4.95mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Voltage Rating	465VAC, 655VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSQ-104
Other Names	SAM1190-04
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288934-SSQ-104-02-S-D-RA
Ultra Librarian 3D Model	Ultra Librarian SSQ-104-02-S-D-RA CAD Model

Alternative Products

Description

The SSQ rectangular connector is a receptacle type with a forked contact type.

Positions: 8
Rows Loaded: All
Contact Finish-Mating: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Contact Finish-Post: Tin
Package: Bulk
Insulation Color: Black
Mounting Type: Through Hole, Right Angle
Row Spacing-Mating: 0.100" (2.54mm)
Contact Length-Post: 0.100" (2.54mm)
Insulation Height: 0.195" (4.95mm)
Contact Shape: Square
Operating Temperature Range: -55°C ~ 125°C
ECCN: EAR99
