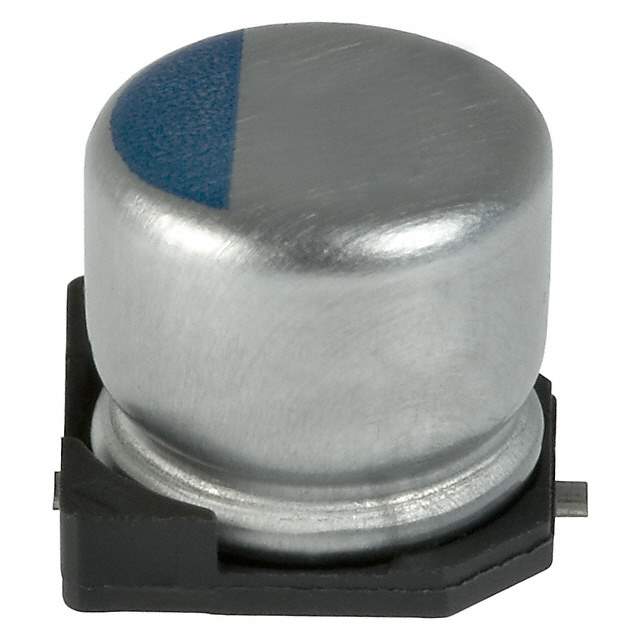

APXA100ARA560MF55G Real Image
Same model may have multiple batches, images only for reference.

APXA100ARA560MF55G

Part No APXA100ARA560MF55G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS
Datasheet
APXA100ARA560MF55G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series NPCAP-PXA
Packaging Reel - TR
Type Polymer
Capacitance 56μF
Tolerance ±20%
Voltage Rating 10V
ESR (Equivalent Series Resistance) 31 mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Ripple Current - High Frequency 2.25A @ 100kHz
Size 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.205" (5.20mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 1147000-APXA100ARA560MF55G
Manufacturer Homepage www.chemi-con.com
Popularity Medium
Supply and Demand Status Balance
Family Name PXA
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian APXA100ARA560MF55G CAD Model

Description

The United Chemi-Con NPCAP-PXA series is a polymer capacitor with a capacitance of 56μF and a voltage rating of 10V.

  • Capacitance: 56μF
  • Voltage Rating: 10V
  • ESR (Equivalent Series Resistance): 31 mOhm
  • Ripple Current: 2.25A @ 100kHz
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Size: 0.248" Dia (6.30mm)
  • Lifetime: 15000 Hrs @ 105°C
  • Package: Radial, Can - SMD
  • Applications: Power supplies, DC-DC converters, and portable devices.
