Same model may have multiple batches, images only for reference.

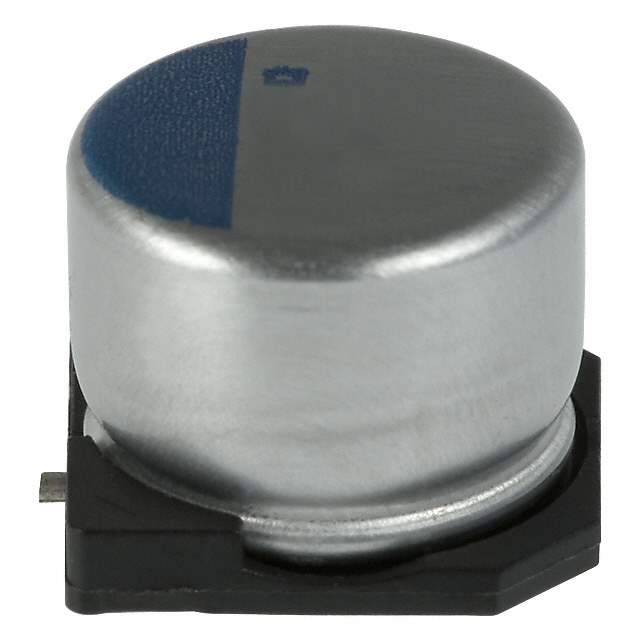

APXA100ARA331MJ80G Real Image
Same model may have multiple batches, images only for reference.

APXA100ARA331MJ80G

Part No APXA100ARA331MJ80G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 330UF 20% 10V SMD / 330 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 24mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXA
Package Tape & Reel
Type Polymer
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 24mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3.77 A @ 100 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-3071-6,APXA100ARA331MJ80S,565-3071-2,565-3071-1,PXA10VC331MJ80TP
Standard Package 500
Win Source Part Number 1001202-APXA100ARA331MJ80G
Ultra Librarian 3D Model Ultra Librarian APXA100ARA331MJ80G CAD Model

Description

The United Chemi-Con NPCAP™-PXA series aluminum-polymer capacitors are designed to provide high capacitance and low ESR in a compact, surface-mount package.

  • Capacitance: 330 μF
  • Voltage Rating: 10 V
  • Package Style: Radial, Can-Style
  • Operating Temperature Range: -55°C to 105°C
  • ESR: 24 mΩ
  • Lifespan: 15000-hour @ 105°C
  • ECCN: EAR99
  • Package Quantity: 500 Units on a reel
  • REACH Status: Unaffected
  • HTSUS: 8532.22.0020
