Same model may have multiple batches, images only for reference.

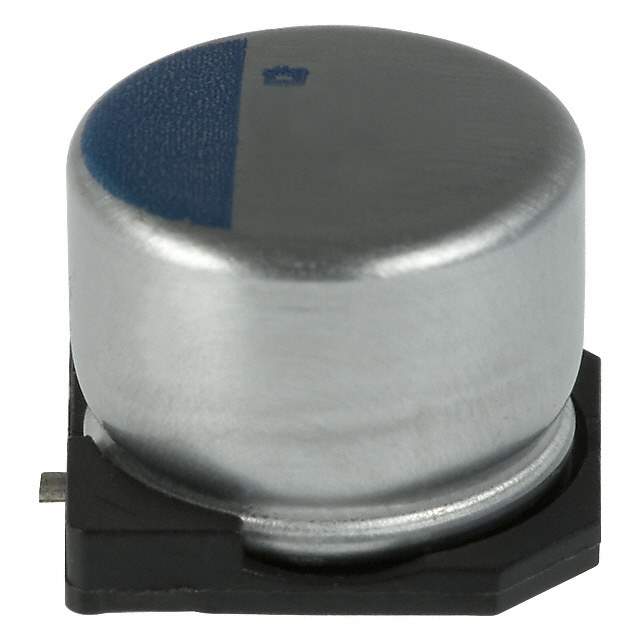

APXA100ARA100MD55G Real Image
Same model may have multiple batches, images only for reference.

APXA100ARA100MD55G

Part No APXA100ARA100MD55G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 10UF 20% 10V SMD / 10 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 220mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXA
Package Tape & Reel
Product Status Obsolete
Type Polymer
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 220mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 700 mA @ 100 kHz
Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-4868-2,APXA100ARA100MD55G-ND,565-4868-1,565-4868-6
Standard Package 2,000
Win Source Part Number 965007-APXA100ARA100MD55G
Ultra Librarian 3D Model Ultra Librarian APXA100ARA100MD55G CAD Model

Description

The APXA100ARA100MD55G is an obsolete electronic component manufactured by United Chemi-Con.

  • Component Type: Polymer Capacitor
  • Capacitance: 10 μF
  • Voltage Rating: 10V
  • Category: Aluminum-Polymer Capacitors
  • Supply and Demand Status: Balanced
  • Package: Tape and Reel
  • Standard Package Quantity: 2000
  • ESR: 220mOhm
  • Lifetime: 15000 hours @ 105°C
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • REACH: Unaffected
  • HTSUS: 8532.22.0020
