Same model may have multiple batches, images only for reference.

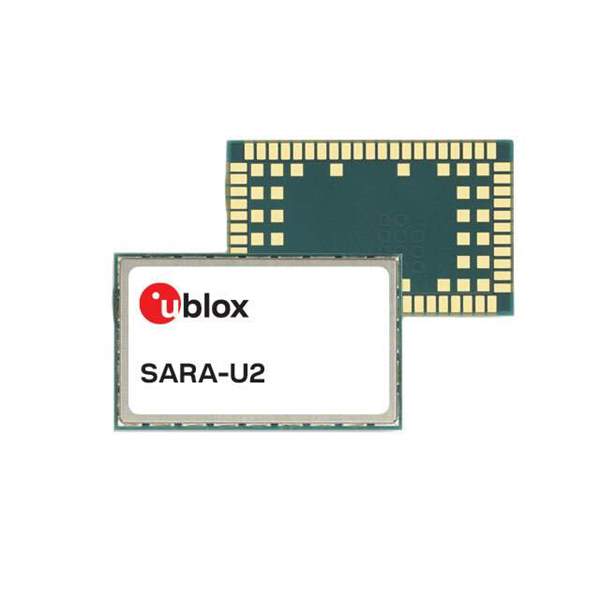

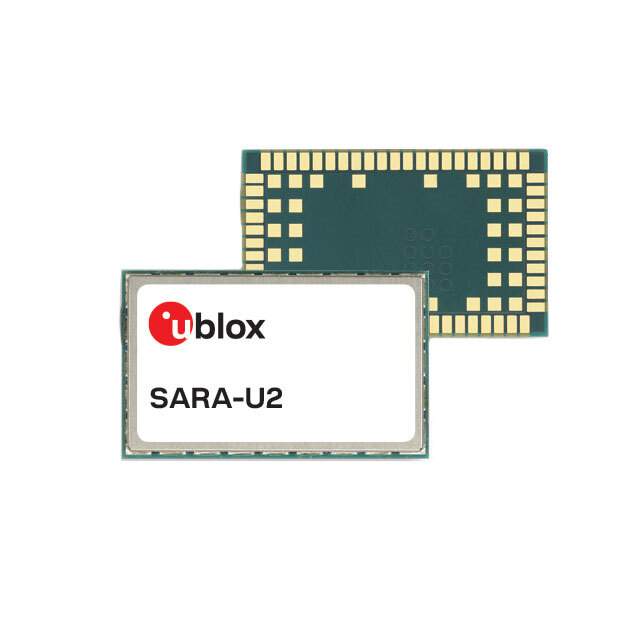

SARA-U270-53S

Name: SARA-U270-53S
Brand: U-blox
SKU: 1235636
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SARA-U270-53S
Manufacturer	U-blox
Catalog	RF Transceiver Modules
Description	RX TXRX MOD CELL SMD KOREA HSP / Cellular HSDPA, HSUPA, UMTS Transceiver Module 900MHz, 1.8GHz, 2.1GHz Antenna Not Included Surface Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF/IF and RFID>RF Transceiver Modules and Modems
Mfr	U-Blox
Series	SARA-U2
Package	Tape & Reel
Product Status	Obsolete
RF Family/Standard	Cellular
Protocol	HSDPA, HSUPA, UMTS
Frequency	900MHz, 1.8GHz, 2.1GHz
Data Rate	7.2Mbps
Sensitivity	-111dBm
Serial Interfaces	GPIO, I²C, UART, USB
Antenna Type	Antenna Not Included
Voltage - Supply	3.3V ~ 4.4V
Current - Receiving	560mA
Current - Transmitting	560mA
Mounting	SMD (SMT)
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	96-SMD Module
Other Names	672-1193-6,672-1193-2,672-1193-1
Standard Package	250
MSL Level	4 (72 Hours)
ECCN	5A992C
HTSUS	8517.62.0090
Win Source Part Number	1235636-SARA-U270-53S
Ultra Librarian 3D Model	Ultra Librarian SARA-U270-53S CAD Model

Alternative Products

Description

The SARA-U2 RF Transceiver Module is a high-speed cellular module that operates on the 900MHz, 1.8GHz, and 2.1GHz frequencies.

Frequencies: 900MHz, 1.8GHz, and 2.1GHz
Protocols: HSDPA, HSUPA, and UMTS
Data Rate: 7.2Mbps
Sensitivity: -111dBm
Receiving Current: 560mA
Interfaces: GPIO, I²C, UART, and USB serial
Transmitting Current: 560mA
Designed for: use in cellular applications
Package: 96-SMD module
Operating Temperature Range: -40°C to 85°C
