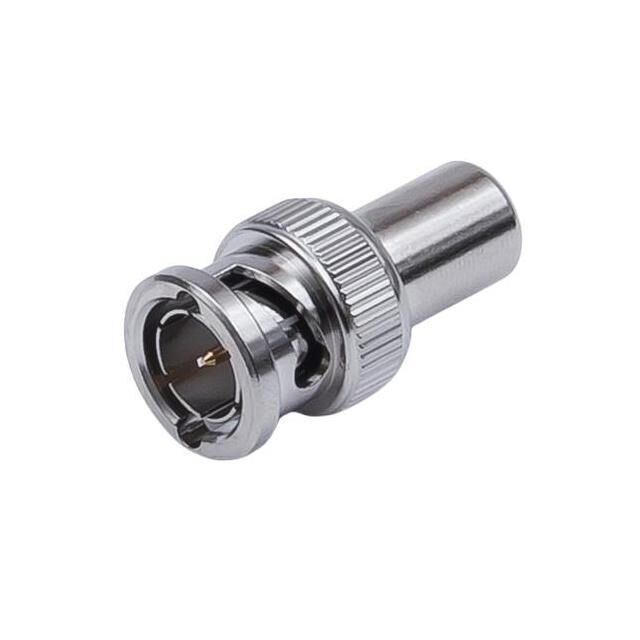

Same model may have multiple batches, images only for reference.
BNCP75TD1G-1W TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BNCP75TD1G-1W

Part No BNCP75TD1G-1W
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Terminators
Description an BNC75Ω Terminator. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, operates up to 1GHz, and has a rated voltage of AC 500V, and an excellent V.S.W.R 1.2(Max.) at DC~600MHz. The contact is made of Brass/Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 1W.
Datasheet
BNCP75TD1G-1W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style BNC
Connector Type Plug, Male Pin
Frequency - Max 1GHz
Impedance 75 Ohms
Mounting Type Free Hanging, Cap
Body Finish Nickel
Contact Material Brass
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian BNCP75TD1G-1W CAD Model
