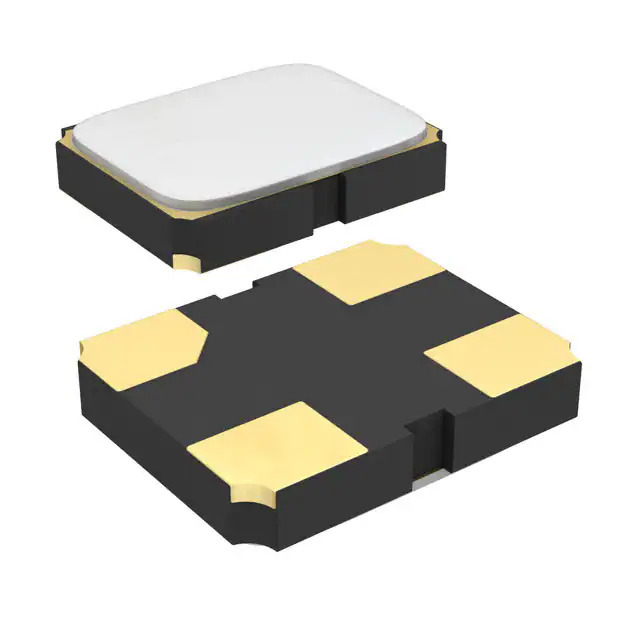

Same model may have multiple batches, images only for reference.
8Y32000004 TXC CORPORATION
Same model may have multiple batches, images only for reference.

8Y32000004

Part No 8Y32000004
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 32.0000MHZ 8PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 8Y
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 32 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 75°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1366320-8Y32000004
Ultra Librarian 3D Model Ultra Librarian 8Y32000004 CAD Model

Description

The 8Y32000004 is a 32MHz crystal from TXC CORPORATION's 8Y series. It is designed for use in crystals, oscillators, and resonators applications.

  • Manufacturer: TXC CORPORATION
  • Series: 8Y
  • Frequency: 32MHz
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 8pF
  • Mode: Fundamental
  • Package: 4-SMD
  • Mounting Type: Surface Mount
  • ESR: 80 Ohms
  • Seated Height (Max): 0.022"
  • Operating Temperature: -30°C to 75°C
  • Product Status: Active
