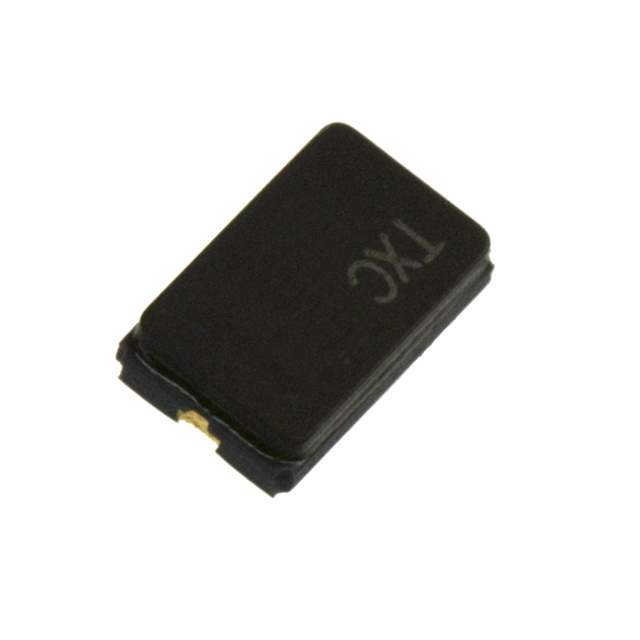

7A12000062 Real Image
Same model may have multiple batches, images only for reference.

7A12000062

Part No 7A12000062
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 12MHZ 18PF SMD
Datasheet
7A12000062 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Series 7A
Packaging Reel package
Type MHz Crystal
Frequency 12MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
Operating Temperature Range -10°C ~ 70°C
Mounting SMD
Package 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Maximum) 0.053" (1.35mm)
Win Source Part Number 766218-7A12000062
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7A12000062 CAD Model

Description

The 766218-7A12000062 is a surface mount crystal from the 7A series by TXC Corporation.

  • Package: Reel
  • Length: 0.197 inches
  • Width: 0.126 inches
  • Frequency: 12 MHz
  • Load Capacitance: 18pF
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±20ppm
  • Temperature Range: -10°C to 70°C
