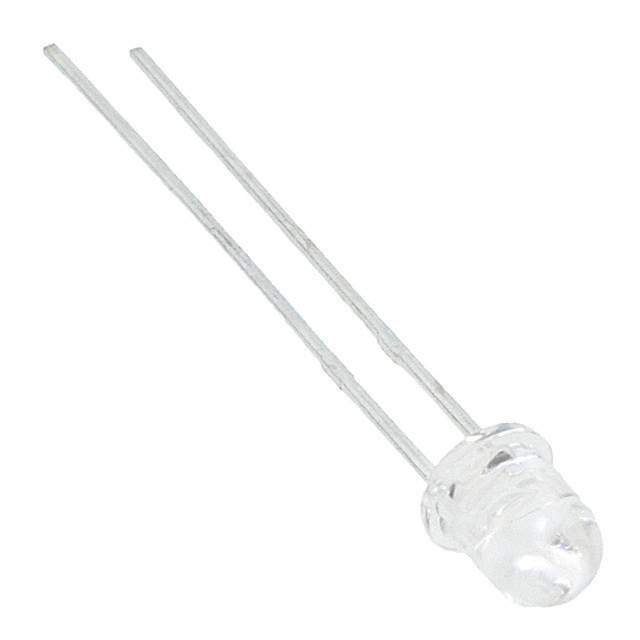

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr TT Electronics/Optek Technology
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Wavelength 890nm
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 60°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting Type Through Hole
Package / Case TO-18-2
Base Product Number OP293
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 365-1059,2266-OP293B
Standard Package 500
Win Source Part Number 1083224-OP293B
Ultra Librarian 3D Model Ultra Librarian OP293B CAD Model

Description

This infrared LED emitter is part number 1083224-OP293B and is manufactured by TT Electronics/Optek Technology.

  • Package: bulk
  • View Orientation: top view
  • Package Quantity: 500
  • Maximum DC Forward Current: 100mA
  • Viewing Angle: 60 degrees
  • Forward Voltage: 2V
  • Wavelength: 890nm
  • Radiant Intensity @ min forward current: not specified
  • Mounting Type: through hole
  • Package / Case: TO-18-2
  • Operating Temperature: -40 to 100 degrees Celsius
  • MSL Level: 1 (unlimited)
  • REACH: unaffected
  • HTSUS Code: 8541.41.0000
  • Alternative: SFH 4846, SFH 4857, and SFH 4845OP 293B
