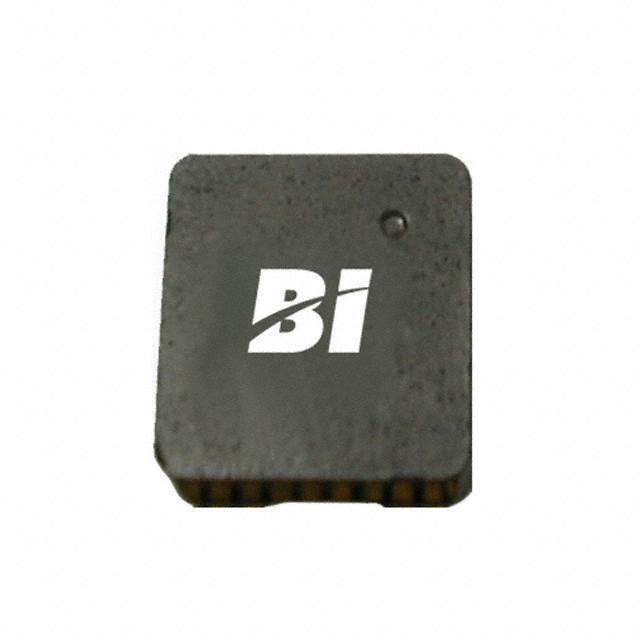

HM72A-101R5LFTR13 Real Image
Same model may have multiple batches, images only for reference.

HM72A-101R5LFTR13

Part No HM72A-101R5LFTR13
Manufacturer TT Electronics
Catalog Fixed Inductors
Description FIXED IND 1.5UH 12A 5.8 MOHM SMD
Datasheet
HM72A-101R5LFTR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TT Electronics/BI Magnetics
Packaging Reel - TR
Type Molded
Inductance 1.5μH
Tolerance ±20%
Current Rating 12A
Current - Saturation 27.5A
DC Resistance (DCR) 5.8 mOhm Max
Temperature Range - Operating -40°C to 130°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 1043601-HM72A-101R5LFTR13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HM72A-101R5LFTR13 CAD Model

Description

TT Electronics/BI Magnetics' HM72A-101R5LFTR13 is a molded inductor that has an inductance of 1.5μH and can handle a current rating of 12A.

  • Inductance: 1.5μH
  • Current Rating: 12A
  • Mounting: Surface-Mounted
  • Tolerance: ±20%
  • Height: 0.157" (4.00mm)
  • DC Resistance: 5.8 mOhm Max
  • Operating Temperature: -40°C to 130°C
