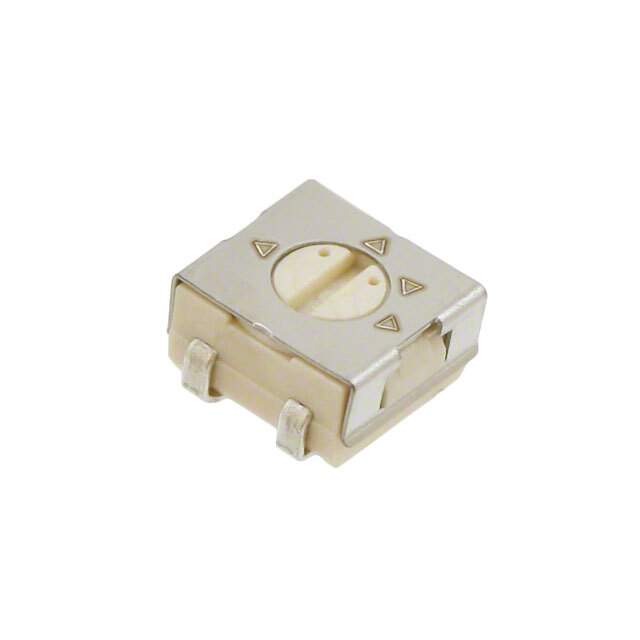

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr TT Electronics/BI
Series 23
Package Tape & Reel
Resistance 20 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm)
Base Product Number 23AR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 987-1010-1,987-1010-6,987-1010-2
Standard Package 500
Win Source Part Number 972520-23AR20KLFTR
Ultra Librarian 3D Model Ultra Librarian 23AR20KLFTR CAD Model

Description

The 972520-23AR20KLFTR is a variable resistor potentiometer from TT Electronics/BI.

  • Adjustment Type: Top adjustment
  • Resistive Material: Cermet
  • Resistance: 20 kOhms
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W (1/4W)
  • Mounting: SMD (SMT)
  • Package: Tape and reel (500 units per package)
  • Dimension: Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm)
  • Category: Potentiometers, Variable Resistors
  • Base Product Number: 23AR
