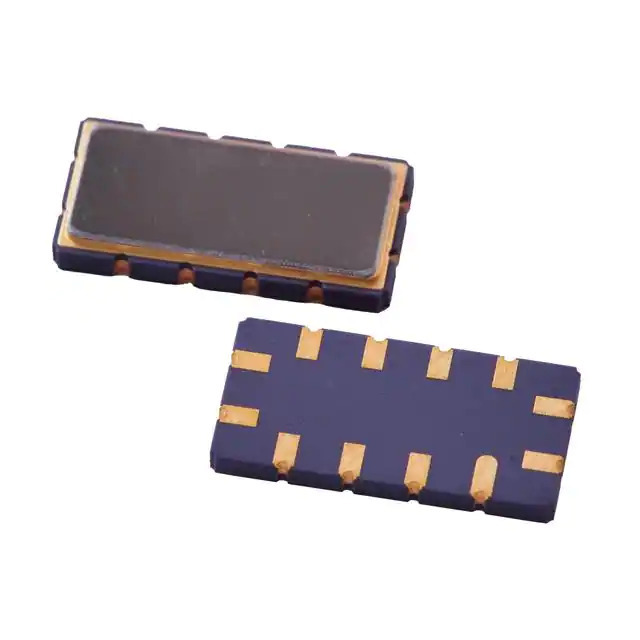

Same model may have multiple batches, images only for reference.
TB1323A TST - Tamsan
Same model may have multiple batches, images only for reference.

TB1323A

Part No TB1323A
Manufacturer TST - Tamsan
Catalog SAW Filters
Description SAW FILTER, SM13365-12PAD, 70.00
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 1380032-TB1323A
MSL Level 1 (Unlimited)
Size / Dimension 0.524" L x 0.256" W (13.30mm x 6.50mm)
Height (Max) 0.073" (1.85mm)
Package / Case 12-SMD, No Lead
Mounting Type Surface Mount
Applications General Purpose
Ratings -
Insertion Loss 11.5dB
Bandwidth -
Frequency - Center 70MHz
Product Status Active
Package Tape & Reel
Series -
Mfr TST
Category Filters - SAW Filters
Ultra Librarian 3D Model Ultra Librarian TB1323A CAD Model

Description

The SAW Filter is a high-performance electronic component designed for general-purpose applications manufactured by TST.

  • Category: Filters - SAW Filters
  • Package: Tape and Reel
  • Status: Active
  • Size: 0.524" L x 0.256" W (13.30mm x 6.50mm)
  • Height: 0.073" (1.85mm)
  • Insertion Loss: 11.5dB
  • Center Frequency: 70MHz
  • Mounting Type: Surface Mountable
