Same model may have multiple batches, images only for reference.

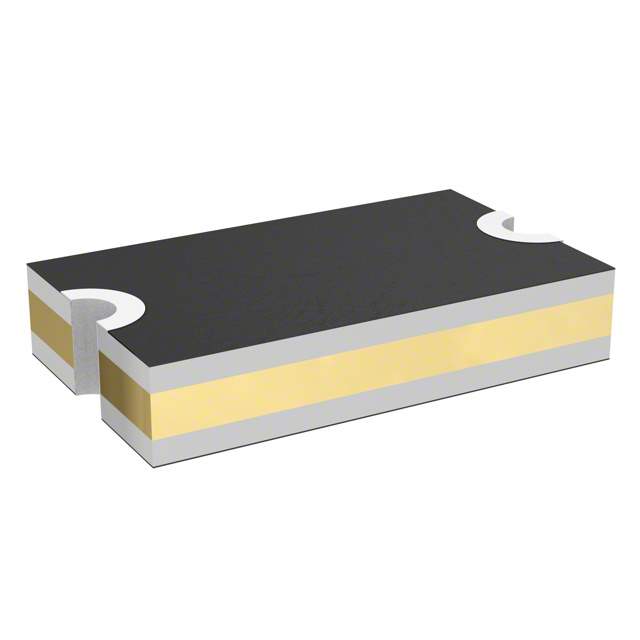

PICOSMDC050S-2 Real Image
Same model may have multiple batches, images only for reference.

PICOSMDC050S-2

Part No PICOSMDC050S-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 500MA 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Maximum) 500mA
Current - Trip (It) 1A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Maximum) 800 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 0805 (2012 Metric), Concave
Dimension 0.083" L x 0.055" W (2.10mm x 1.40mm)
Thickness (Maximum) 0.037" (0.93mm)
Approvals CSA, TUV, UL
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801759-PICOSMDC050S-2
Ultra Librarian 3D Model Ultra Librarian PICOSMDC050S-2 CAD Model

Description

The PICOSMDC050S-2 is a polymeric type surface mount device from Littelfuse Inc. and has a sufficient supply and demand status.

  • Maximum Voltage: 6V
  • Maximum Current: 100A
  • Current Trip (It): 1A
  • Time to Trip: 100ms
  • Operating Temperature Range: -40°C ~ 85°C
  • Dimension: 0.083" L x 0.055" W (2.10mm x 1.40mm)
  • Resistance - Initial (Ri) (Min): 150 mOhms
  • Manufacturer Package: 0805 (2012 Metric), Concave
  • Current Hold (Ih) (Maximum): 500mA
  • Thickness (Maximum): 0.037" (0.93mm)
  • Resistance - Post Trip (R1) (Maximum): 800 mOhms
  • Packaging: Reel
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
