TMC2300-LA-T Trinamic Motion Control GmbH
Same model may have multiple batches, images only for reference.

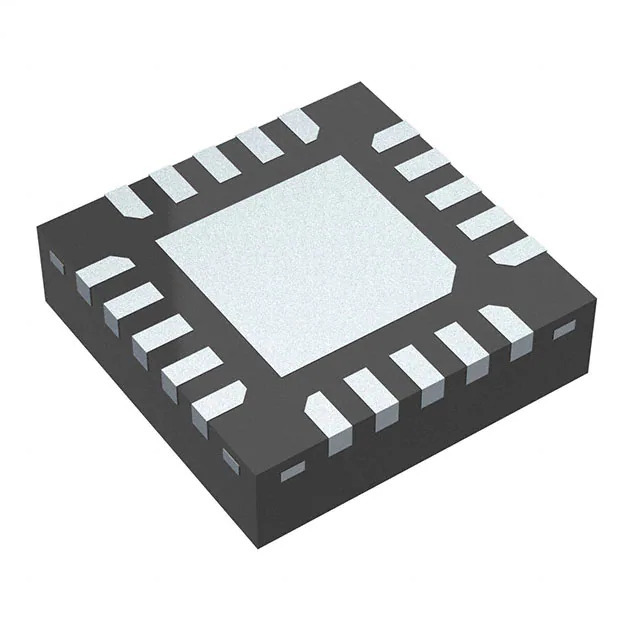

TMC2300-LA-T

Part No TMC2300-LA-T
Manufacturer Trinamic Motion Control GmbH
Catalog PMIC - Motor Drivers, Controllers
Description LOW VOLTAGE MOTOR DRIVER 2-11V Q
Datasheet
TMC2300-LA-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Trinamic Motion Control GmbH
Series stallGuard™
Package Tape & Reel
Product Status Active
Motor Type - Stepper -
Motor Type - AC, DC -
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Step/Direction
Interface Step/Direction, UART
Technology Power MOSFET
Step Resolution 1 ~ 1/256
Applications Automation Control, Industrial, Medical
Current - Output 1.2A
Voltage - Supply 2V ~ 11V
Voltage - Load 1.65V ~ 1.95V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 20-VFQFN Exposed Pad
Supplier Device Package 20-QFN (3x3)
Base Product Number TMC2300
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372103-TMC2300-LA-T
Ultra Librarian 3D Model Ultra Librarian TMC2300-LA-T CAD Model

Description

The TMC2300-LA-T is a fully integrated motor driver and control IC from Trinamic Motion Control GmbH.

  • Series: stallGuard™
  • Application: Motor Driver and Control
  • Fields: Automation Control, Industrial, and Medical
  • Package: 20-VFQFN Exposed Pad
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 125°C
  • Voltage Supply Range: 2V to 11V
  • Output Current: 1.2A (Max)
  • Interface: Step/Direction and UART
