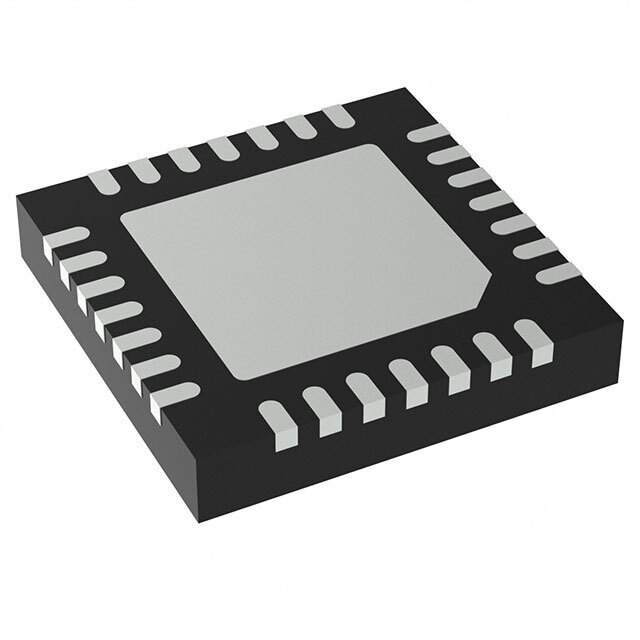

TMC2209-LA-T Real Image
Same model may have multiple batches, images only for reference.

TMC2209-LA-T

Part No TMC2209-LA-T
Manufacturer Trinamic Motion Control GmbH
Catalog PMIC - Motor Drivers, Controllers
Description IC MTR DRV 4.75-28V QFN28
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 27 Weeks
Features Bipolar Motor Driver Power MOSFET Step/Direction, UART 28-QFN (5x5)
Manufacturer Trinamic Motion Control GmbH
Series stallGuard™
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 28-VFQFN Exposed Pad
Case / Package 28-QFN (5x5)
Family Name TMC2209
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 1460-1398-6, 00-0173T, 1460-1398-1, 1460-TMC2209-LA-TTR, 1460-1398-2, Q11724201
Quantity per package 6000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 936994-TMC2209-LA-T
Ultra Librarian 3D Model Ultra Librarian TMC2209-LA-T CAD Model

Description

The Trinamic Motion Control GmbH TMC2209-LA-T is a bipolar motor driver designed for integrated circuits (ICs). It features power MOSFET step/direction, UART, and stallGuard™.

  • Features: power MOSFET step/direction, UART, stallGuard™
  • Series: TMC2209
  • Mounting: Surface Mount
  • Package: 28-QFN (5x5)
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Popularity: 93 pct. in the open market
  • Supply and Demand Status: balance
  • ECCN: EAR99
  • Package Contains: 6000 pieces
  • MSL Level: 3 (168 Hours)
  • Estimated Production Lead Time: 27 weeks
  • HTSUS Code: 8542.39.0001
  • Other Part Numbers: 1460-1398-6, 00-0173T, 1460-1398-1, 1460-TMC2209-LA-TTR, 1460-1398-2, and Q11724201
