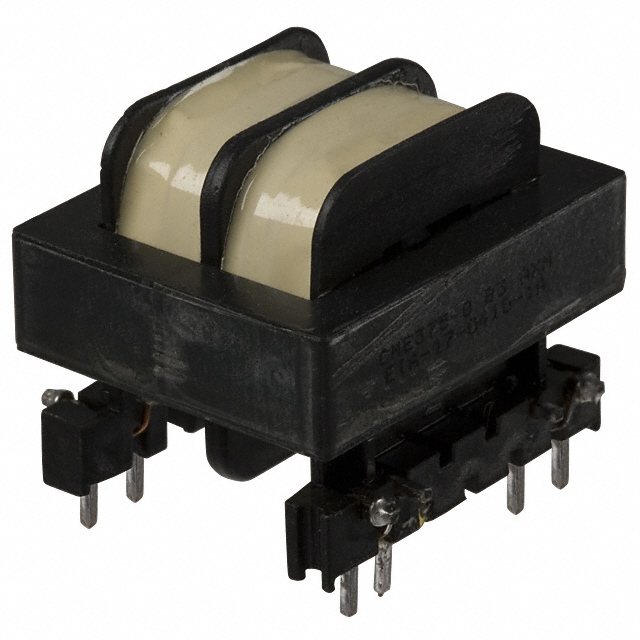

CMT-8119

Part No CMT-8119
Manufacturer Triad Magnetics
Catalog Common Mode Chokes
Description CMC 4MH 14.5A 2LN THROUGH HOLE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4 mH @ 1 kHz
Current Rating (Max) 14.5A
DC Resistance (DCR) (Max) 12mOhm
Voltage Rating - AC 1500V (1.5kV)
Temperature Range - Operating -55°C ~ 105°C
Approval Agency CSA, IEC, UL, VDE
Mounting Type Through Hole
Size / Dimension 1.700" L x 0.900" W (43.18mm x 22.86mm)
Height (Max) 1.650" (41.91mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Limited
Win Source Part Number 1530486-CMT-8119
Ultra Librarian 3D Model Ultra Librarian CMT-8119 CAD Model
