Same model may have multiple batches, images only for reference.

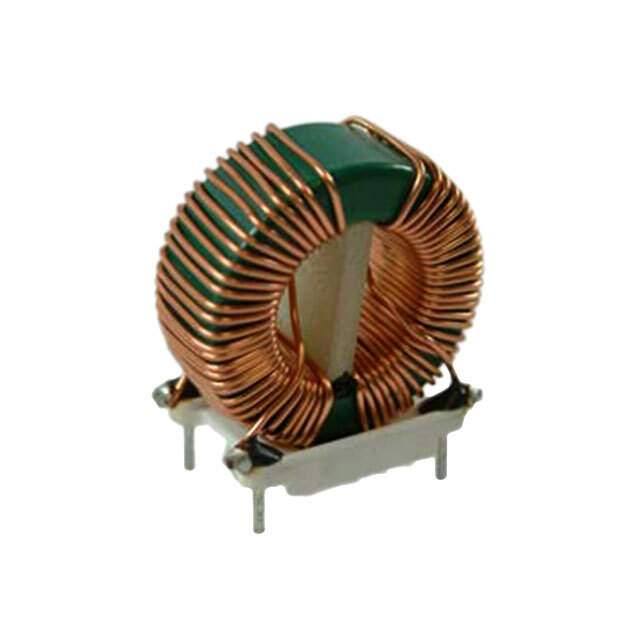

CMT-8111-B Real Image
Same model may have multiple batches, images only for reference.

CMT-8111-B

Part No CMT-8111-B
Manufacturer Triad Magnetics
Catalog Common Mode Chokes
Description CMC 12MH 4A 2LN TH ESD / 12 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 4A DCR 110mOhm
Datasheet
CMT-8111-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Triad Magnetics
Series CMT
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 12 mH @ 1 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 110mOhm
Voltage Rating - AC 1500V (1.5kV)
Temperature Range - Operating -55°C ~ 105°C
Approval Agency CSA, IEC, UL, VDE
Features ESD
Mounting Type Through Hole
Dimension 1.350" L x 0.800" W (34.29mm x 20.32mm)
Height (Max) 1.450" (36.83mm)
Package / Case Vertical, 4 PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 140
Win Source Part Number 1110512-CMT-8111-B
Ultra Librarian 3D Model Ultra Librarian CMT-8111-B CAD Model

Description

The Triad Magnetics CMT-8111-B is a common mode choke filter that is designed to provide ESD protection.

  • Application: ESD Protection
  • Current Rating (Max): 4A
  • Voltage Rating: 1500V AC
  • Application: Power Line Filtering
  • Inductance: 12mH @ 1kHz
  • Packaging: Bulk
  • Standard Package: 140
  • Package/Case: Vertical, 4 PC Pin
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C to 105°C
  • Dimension: 1.350" L x 0.800" W (34.29mm x 20.32mm)
  • Approvals: CSA, IEC, UL, VDE
