Same model may have multiple batches, images only for reference.

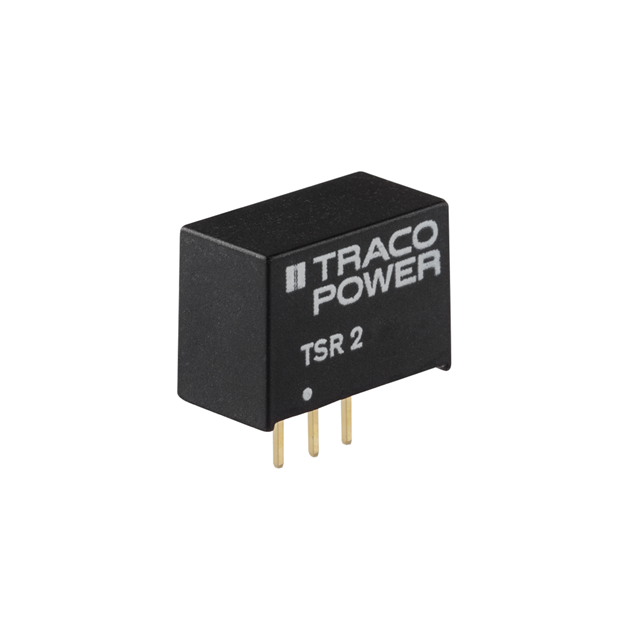

TSR 2-2425 Real Image
Same model may have multiple batches, images only for reference.

TSR 2-2425

Part No TSR 2-2425
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 2.5V 5W / Linear Regulator Replacement DC DC Converter 1 Output 2.5V 2A 4.6V - 36V Input
Datasheet
TSR 2-2425 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 4.6V
Voltage - Input (Max) 36V
Voltage - Output 1 2.5V
Current - Output (Max) 2A
Power (Watts) 5 W
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 3-SIP Module
Size / Dimension 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm)
Base Product Number TSR 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TSR 2-2425-ND,TSR2-2425-ND,TSR2-2425,1951-3244
Standard Package 10
Win Source Part Number 1336413-TSR 2-2425
Ultra Librarian 3D Model Ultra Librarian TSR 2-2425 CAD Model

Description

The electronic component with Id 1149853 is a Traco Power product with Win Source Part Number 1336413-TSR 2-2425.

  • Category: power supplies - board mount>DC DC converters
  • Packaging: Tube
  • Type: Linear regulator replacement
  • Features: OCP and SCP
  • Size/Dimension: 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm)
  • Application: ITE (commercial)
  • Standard Package: 10
  • Mounting: Through hole
  • Power (watts): 5 W
  • Outputs: One
  • Maximum Output Current: 2A
  • Input Voltage Range: 4.6V to 36V
  • Voltage Output 1: 2.5V
  • Efficiency: 89 percent
  • Temperature Range: -40°C to 85°C (with derating)
  • Case / Package: 3-SIP module
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
  • Other Part Numbers: TSR 2-2425-ND, TSR2-2425-ND, TSR2-2425, and 1951-3244
  • Base Product Number: TSR 2
  • Compliance: ROHS3 compliant
