Same model may have multiple batches, images only for reference.

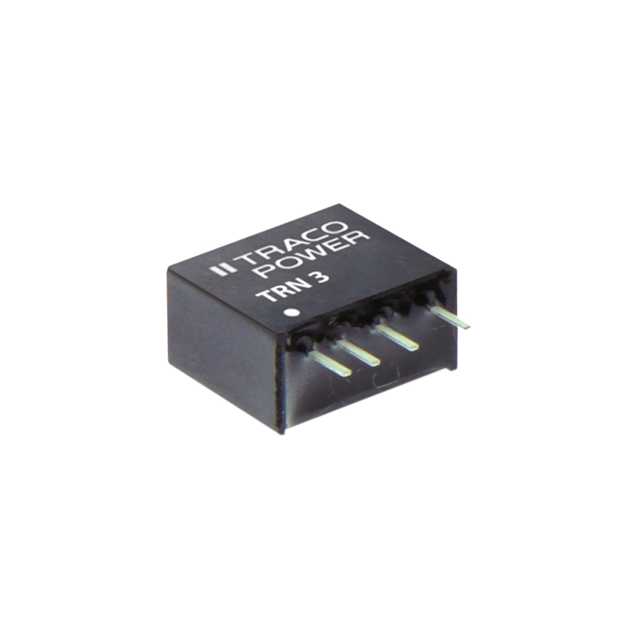

TRN 3-0522 Real Image
Same model may have multiple batches, images only for reference.

TRN 3-0522

Part No TRN 3-0522
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 4.5V - 13.2V Input
Datasheet
TRN 3-0522 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Through Hole
Case / Package 5-SIP Module
Size / Dimension 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Base Product Number TRN 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN3-0522-ND,1951-3230,2266-TRN 3-0522,TRN 3-0522-ND,TRN3-0522
Standard Package 10
Win Source Part Number 1336364-TRN 3-0522
Ultra Librarian 3D Model Ultra Librarian TRN 3-0522 CAD Model

Description

The electronic component with Id 1149804 is manufactured by Traco Power and its Win Source Part Number is 1336364-TRN 3-0522.

  • Type: Power supply board mount DC DC converter with SCP feature
  • Size/Dimensions: 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
  • Standard Package: 10
  • Mounting: Through hole
  • Power Output: 3W
  • Outputs: 2
  • Voltage Isolation: 1.6kV
  • Voltage Input: 4.5V to 13.2V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Efficiency: 80%
  • Operating Temperature: -40°C to 85°C
  • Case/Package: 5-SIP Module
  • ROHS3 Compliant: Yes
  • Threat of Fake Products: High (score of 81)
