Same model may have multiple batches, images only for reference.

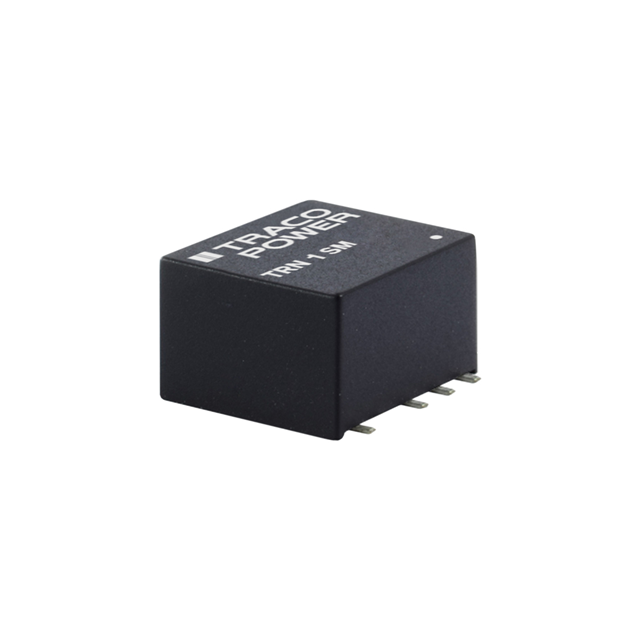

TRN 1-4821SM Real Image
Same model may have multiple batches, images only for reference.

TRN 1-4821SM

Part No TRN 1-4821SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 36V - 75V Input
Datasheet
TRN 1-4821SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 78%
Mounting Surface Mount
Case / Package 7-SMD Module
Size / Dimension 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
Base Product Number TRN 1
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN 1-4821SM-ND,TRN1-4821SM
Standard Package 10
Win Source Part Number 1336353-TRN 1-4821SM
Ultra Librarian 3D Model Ultra Librarian TRN 1-4821SM CAD Model

Description

This power supply board mount electronic component is manufactured by Traco Power.

  • Win Source Part Number: 1336353-TRN 1-4821SM
  • Category: DC DC Converters
  • Packaging: Tube
  • Type: Isolated module with SCP features
  • Size/Dimension: 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
  • Suitable for: ITE (Commercial) applications
  • Standard Package: 10
  • Mounting: Surface mountable
  • Power: 1 W
  • Voltage Isolation: 1.6 kV
  • Outputs: 2
  • Maximum Current Output: 100mA each
  • Input Voltage: 36V to 75V
  • Output Voltage 1: 5V
  • Output Voltage 2: -5V
  • Efficiency: 78%
  • Operating Temperature: -40°C to 90°C
  • Case/Package: 7-SMD module
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.40.9580
  • Other Part Numbers: TRN 1-4821SM-ND and TRN1-4821SM
  • ROHS3 Compliant: Yes
