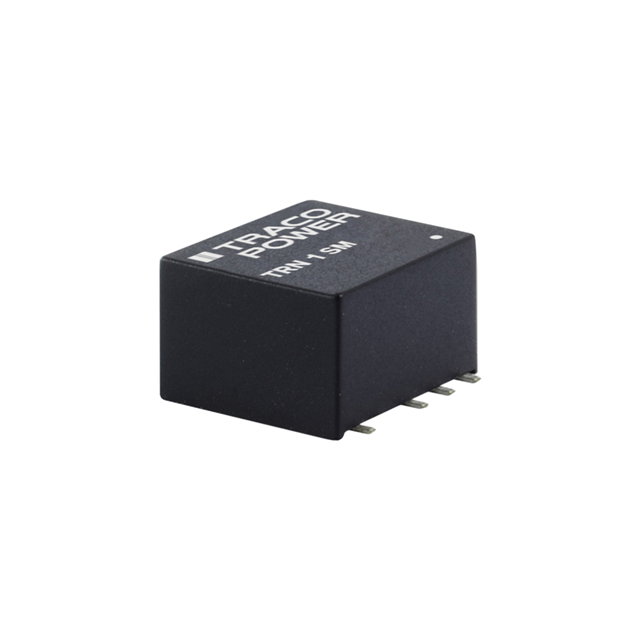

TRN 1-1222SM Real Image
Same model may have multiple batches, images only for reference.

TRN 1-1222SM

Part No TRN 1-1222SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1.1W / Isolated Module DC DC Converter 2 Output 12V -12V 45mA, 45mA 9V - 18V Input
Datasheet
TRN 1-1222SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 45mA, 45mA
Power (Watts) 1.1 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 83%
Mounting Surface Mount
Case / Package 7-SMD Module
Size / Dimension 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
Base Product Number TRN 1
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN 1-1222SM-ND,TRN1-1222SM
Standard Package 10
Win Source Part Number 1336324-TRN 1-1222SM
Ultra Librarian 3D Model Ultra Librarian TRN 1-1222SM CAD Model

Description

The Traco Power TRN 1-1222SM is an isolated module DC-DC converter that is designed to meet the requirements of ITE (Commercial) applications.

  • Module Type: Isolated
  • Application: ITE (Commercial)
  • Power Rating: 1.1 W
  • Feature: SCP protection
  • Mounting: Surface mount
  • Package: Tube
  • Input Voltage Range: 9V and 18V
  • Output Voltage: 12V and -12V
  • Outputs: Two
  • Voltage Isolation: 1.6 kV
  • Size: 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
  • Efficiency: 83%
  • Temperature Range: -40°C to 90°C
  • ROHS: ROHS3 compliant
  • ECCN: EAR99
