Same model may have multiple batches, images only for reference.

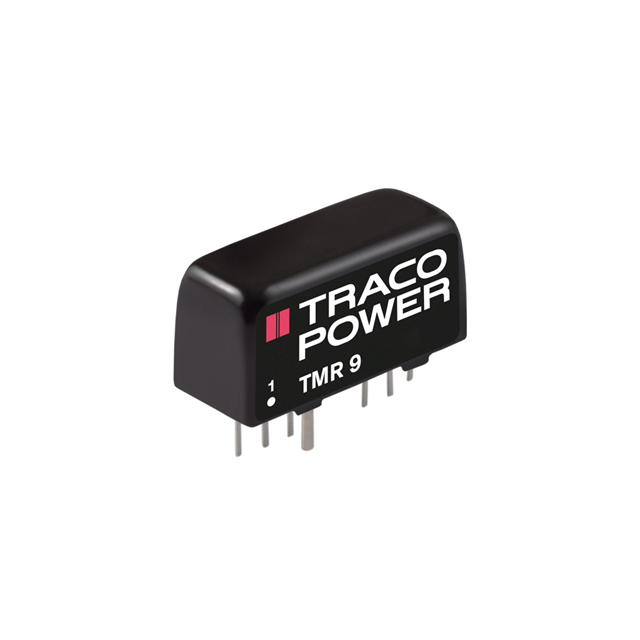

TMR 9-1222 Real Image
Same model may have multiple batches, images only for reference.

TMR 9-1222

Part No TMR 9-1222
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 9W / Isolated Module DC DC Converter 2 Output 12V -12V 375mA, 375mA 9V - 18V Input
Datasheet
TMR 9-1222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 375mA, 375mA
Power (Watts) 9 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88%
Mounting Through Hole
Case / Package 8-SIP Module, 6 Leads
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number TMR 9
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR9-1222-ND,1951-3213,TMR9-1222,TMR 9-1222-ND,2266-TMR 9-1222
Standard Package 10
Win Source Part Number 1336299-TMR 9-1222
Ultra Librarian 3D Model Ultra Librarian TMR 9-1222 CAD Model

Description

The TMR 9-1222 is a DC-DC converter module from Traco Power.

  • Applications: ITE (Commercial)
  • Packaging: Tube
  • Standard Package: 10
  • Input Voltage Range: 9V to 18V
  • Isolation Voltage: 1.6 kV
  • Outputs: Two
  • Maximum Output Current: 375mA each
  • Output Voltages: 12V and -12V
  • Power Rating: 9W
  • Efficiency: 88%
  • Operating Temperature Range: -40°C to 85°C (with derating)
  • Package: 8-SIP module, 6 leads package
