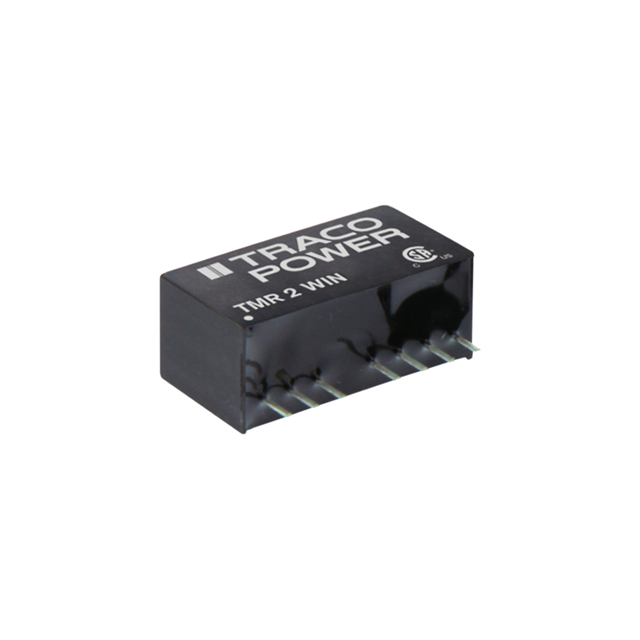

TMR 2-4822WIN Real Image
Same model may have multiple batches, images only for reference.

TMR 2-4822WIN

Part No TMR 2-4822WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 18V - 75V Input
Datasheet
TMR 2-4822WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 83mA, 83mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 82%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number TMR 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR2-4822WIN,TMR 2-4822WIN-ND
Standard Package 10
Win Source Part Number 1336200-TMR 2-4822WIN
Ultra Librarian 3D Model Ultra Librarian TMR 2-4822WIN CAD Model

Description

The 1336200-TMR 2-4822WIN from Traco Power is a DC-DC converter that provides an output of 12V and -12V.

  • Power Rating: 2W
  • Efficiency: 82%
  • Mounting: through-hole mounted
  • Size: 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
  • Features: remote on/off, OCP, and SCP
  • Applications: ITE (Commercial)
  • Voltage Isolation: 1.5kV
  • Outputs: two outputs
  • Current - Output (Max): 83mA each
  • Voltage - Input: 18V to 75V
  • Operating Temperature: -40°C to 90°C (with derating)
  • RoHS3 compliant: Yes
