Same model may have multiple batches, images only for reference.

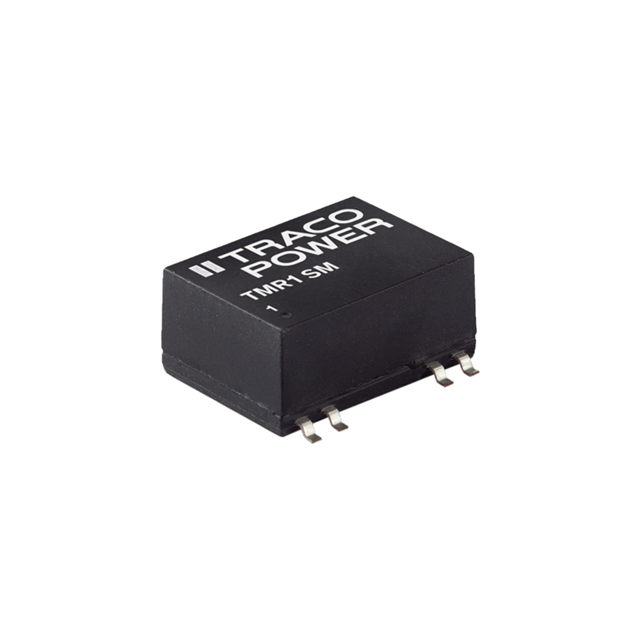

TMR 1-0522SM Real Image
Same model may have multiple batches, images only for reference.

TMR 1-0522SM

Part No TMR 1-0522SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 9V Input
Datasheet
TMR 1-0522SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 82°C (With Derating)
Efficiency 79%
Mounting Surface Mount
Case / Package 14-SMD Module, 7 Leads
Size / Dimension 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm)
Supplier Device Package Module
Approval Agency CB, CSA
Base Product Number TMR 1
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR 1-0522SM-ND,TMR1-0522SM
Standard Package 10
Win Source Part Number 1336112-TMR 1-0522SM
Ultra Librarian 3D Model Ultra Librarian TMR 1-0522SM CAD Model

Description

The Traco Power TMR 1-0522SM is an isolated module DC-DC converter suitable for use in ITE (commercial) applications.

  • Packaging: Tube
  • Standard Package: 10
  • Efficiency: 79%
  • Operating Temperature: -40°C to 82°C (with derating)
  • Voltage Isolation: 1.5kV
  • Outputs: Two
  • Power: 1W
  • Maximum Output Current: 42mA for each output
  • Voltage Input: 4.5V to 9V
  • Size Dimension: 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm)
  • Mounting Type: Surface mount
