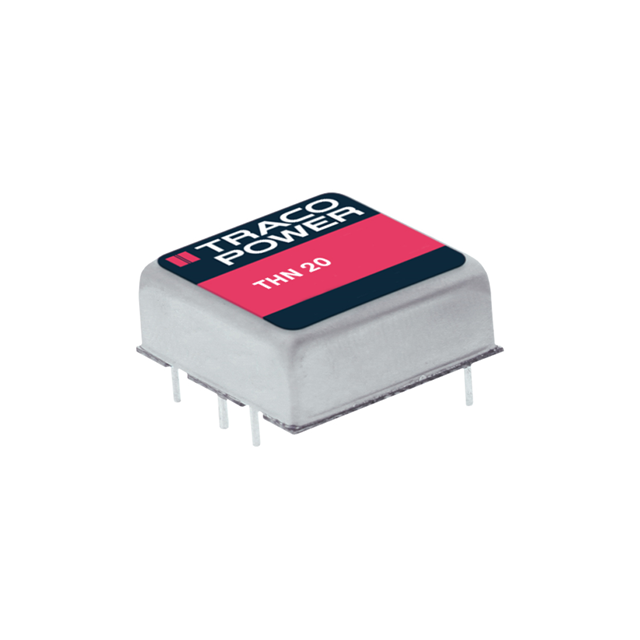

THN 20-4823 Real Image
Same model may have multiple batches, images only for reference.

THN 20-4823

Part No THN 20-4823
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 667mA, 667mA 36V - 75V Input
Datasheet
THN 20-4823 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 667mA, 667mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 90%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN 20-4823-ND,THN20-4823
Standard Package 10
Win Source Part Number 1336044-THN 20-4823
Ultra Librarian 3D Model Ultra Librarian THN 20-4823 CAD Model

Description

The Traco Power 1336044-THN 20-4823 is an isolated module DC DC converter that comes in a tube package.

  • Features: Remote on/off, OVP, and SCP
  • Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Application: ITE (Commercial)
  • Power: 20 W
  • Isolation Voltage: 1.5 kV
  • Number of Outputs: Two
  • Maximum Output Current: 667mA, 667mA
  • Input Voltage Range: 36V to 75V
  • Output Voltage: 15V and -15V
  • Efficiency: 90%
  • Case/Package: 6-DIP module
  • Market Availability: Open market
