Same model may have multiple batches, images only for reference.

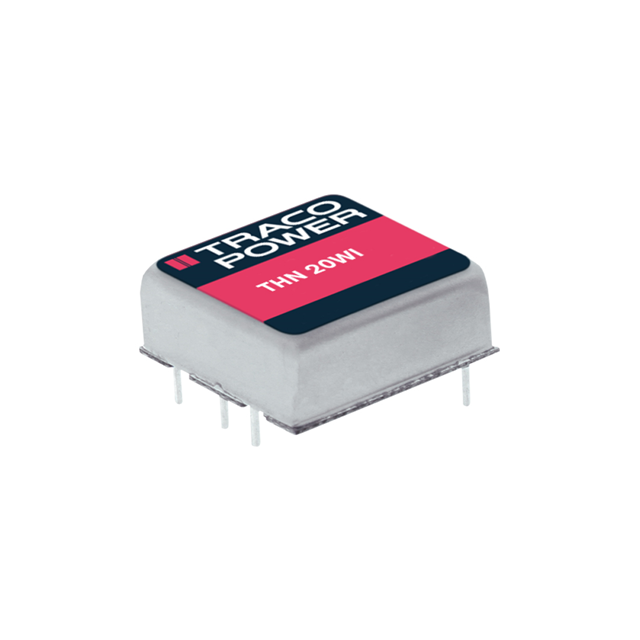

THN 20-2425WI Real Image
Same model may have multiple batches, images only for reference.

THN 20-2425WI

Part No THN 20-2425WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-24V 20W / Isolated Module DC DC Converter 2 Output 24V -24V 417mA, 417mA 9V - 36V Input
Datasheet
THN 20-2425WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Voltage - Output 2 -24V
Current - Output (Max) 417mA, 417mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 91%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Approval Agency CB, cURus
Base Product Number THN 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2303
Standard Package 10
Win Source Part Number 1336011-THN 20-2425WI
Ultra Librarian 3D Model Ultra Librarian THN 20-2425WI CAD Model

Description

The Traco Power THN 20-2425WI is an isolated module DC-DC converter designed for ITE (Commercial) applications.

  • Features: Remote On/Off, OVP, and SCP
  • Power Output: 20 W
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 2
  • Current Output (each): 417mA
  • Voltage Output: 24V and -24V
  • Efficiency: 91%
  • Temperature Range: -40°C to 75°C (with derating)
  • Packaging: 6-DIP module
  • Standard Package: 10
  • Mounting Type: Through Hole
  • Approval Agency: CB and cURus
  • ROHS3 Compliant: Yes
