Same model may have multiple batches, images only for reference.

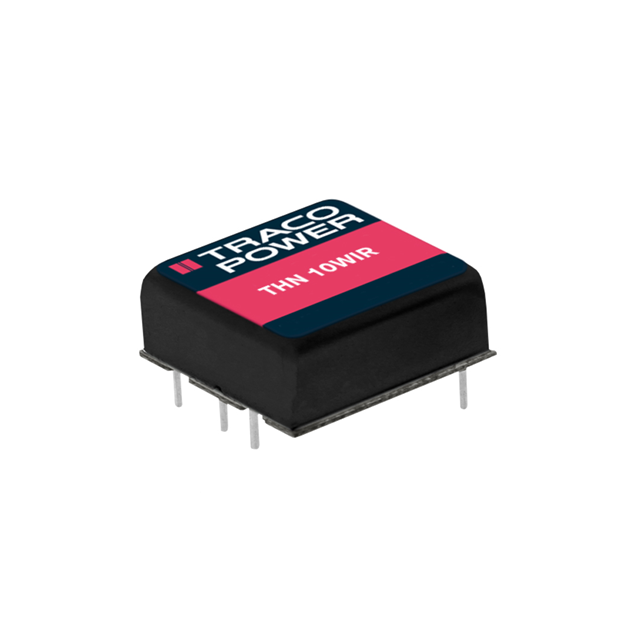

THN 10-7223WIR Real Image
Same model may have multiple batches, images only for reference.

THN 10-7223WIR

Part No THN 10-7223WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 10W / Isolated Module DC DC Converter 2 Output 15V -15V 333mA, 333mA 36V - 160V Input
Datasheet
THN 10-7223WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series THN 10WIR (10W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 160V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 333mA, 333mA
Power (Watts) 10 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 105°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Approval Agency CB, cURus
Base Product Number THN 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-THN10-7223WIR
Standard Package 10
Win Source Part Number 1099244-THN 10-7223WIR
Ultra Librarian 3D Model Ultra Librarian THN 10-7223WIR CAD Model

Description

The THN 10-7223WIR is a 10W isolated module DC-DC converter designed for use in ITE (Commercial) and Railway applications.

  • Package: Tube
  • Outputs: Two
  • Features: Adjustable output and remote on/off capabilities
  • Voltage Isolation: 3 kV
  • Input Voltage: 36V to 160V
  • Output Voltage 1: 15V
  • Output Voltage 2: -15V
  • Efficiency: 89%
  • Mounting: Through-Hole
  • Package/Case: 6-DIP module
  • Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Manufacturer: Traco Power
