Same model may have multiple batches, images only for reference.

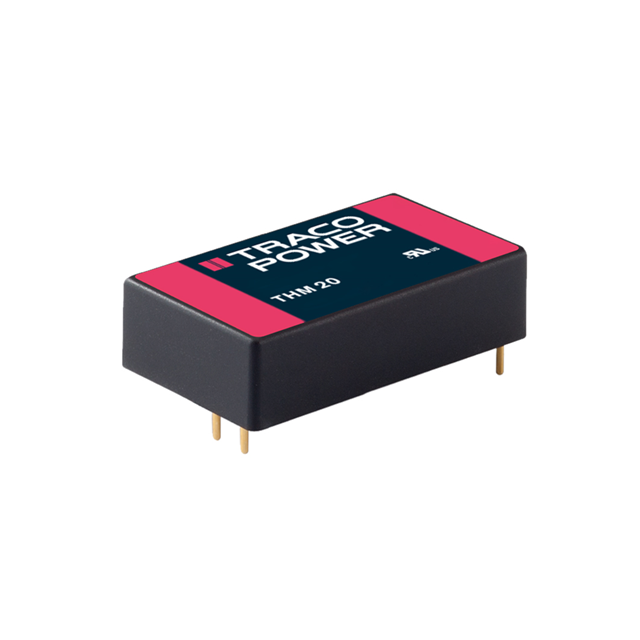

THM 20-1221 Real Image
Same model may have multiple batches, images only for reference.

THM 20-1221

Part No THM 20-1221
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 20W / Isolated Module DC DC Converter 2 Output 5V -5V 2A, 2A 9V - 18V Input
Datasheet
THM 20-1221 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series THM 20 (20W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 2A, 2A
Power (Watts) 20 W
Voltage - Isolation 5 kV
Applications Medical
Features OCP, OTP, OVP, SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 5-DIP Module
Dimension 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm)
Base Product Number THM 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-1651
Standard Package 10
Win Source Part Number 1099247-THM 20-1221
Ultra Librarian 3D Model Ultra Librarian THM 20-1221 CAD Model

Description

The THM 20-1221 series isolated module DC-DC converter is a medical grade power supply with 20W power rating.

  • Power: 20W
  • Outputs: 5V and -5V
  • Current Output: 2A per output
  • Voltage Isolation: 5 kV
  • Input Voltage: 9V to 18V
  • Efficiency: 86%
  • Features: OCP, OTP, OVP, and SCP
  • Package: Tube
  • Mounting: Through-Hole
  • Package/Case: 5-DIP module
  • Temperature Range: -40°C to 80°C (with derating)
  • Dimension: 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm)
  • Manufacturer: Traco Power
  • Application: Medical
