Same model may have multiple batches, images only for reference.

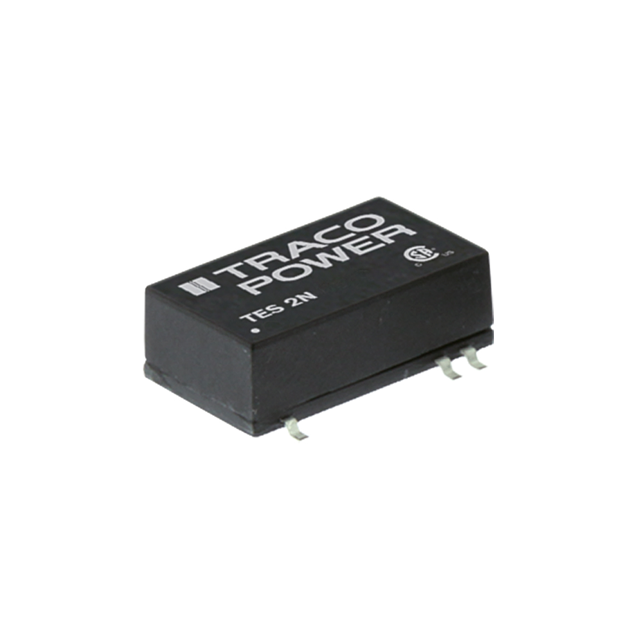

TES 2N-1222 Real Image
Same model may have multiple batches, images only for reference.

TES 2N-1222

Part No TES 2N-1222
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 9V - 18V Input
Datasheet
TES 2N-1222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 85mA, 85mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 78%
Mounting Surface Mount
Case / Package 16-SMD Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
Base Product Number TES 2
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1907
Standard Package 10
Win Source Part Number 1335872-TES 2N-1222
Ultra Librarian 3D Model Ultra Librarian TES 2N-1222 CAD Model

Description

The TES 2N-1222 is a 2W isolated DC-DC converter module from Traco Power designed for use in ITE (commercial) applications.

  • Outputs: 12V and -12V, with a maximum output current of 85mA each
  • Input Voltage Range: 9V to 18V
  • Efficiency: 78%
  • Features: SCP (short circuit protection)
  • Package: 16-SMD module with 6 leads
  • Operating Temperature: -40°C to 85°C (with derating)
  • ROHS3 Compliant: Yes
