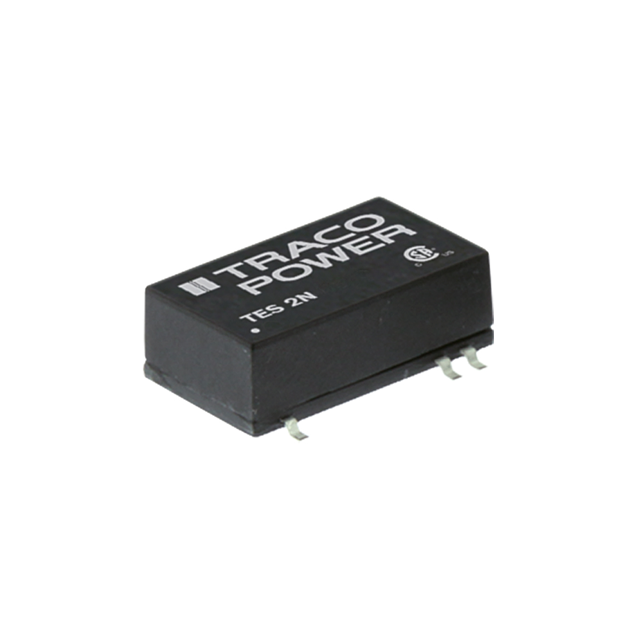

TES 2N-0511 Real Image
Same model may have multiple batches, images only for reference.

TES 2N-0511

Part No TES 2N-0511
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 9V Input
Datasheet
TES 2N-0511 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 73%
Mounting Surface Mount
Case / Package 16-SMD Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
Base Product Number TES 2
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2697
Standard Package 10
Win Source Part Number 1335858-TES 2N-0511
Ultra Librarian 3D Model Ultra Librarian TES 2N-0511 CAD Model

Description

The TES 2N-0511 is an isolated module DC-DC converter from Traco Power with a power output of 2 W.

  • Features: SCP for added safety
  • Voltage Isolation: 1.5 kV
  • Output: Single output of 5 V with a maximum output current of 400mA
  • Input Voltage: 4.5V to 9V
  • Efficiency: 73%
  • Operating Temperature: -40°C to 85°C
  • Size: 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
  • Mounting: Surface Mountable
  • Ideal For: Use in ITE applications
