Same model may have multiple batches, images only for reference.

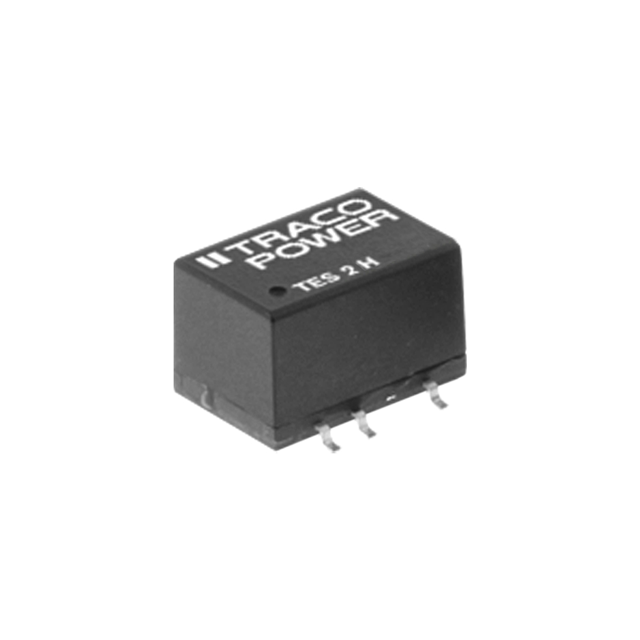

TES 2-1223H Real Image
Same model may have multiple batches, images only for reference.

TES 2-1223H

Part No TES 2-1223H
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 66mA, 66mA 10.8V - 13.2V Input
Datasheet
TES 2-1223H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 66mA, 66mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 80%
Mounting Surface Mount
Case / Package 10-SMD Module, 6 Leads
Size / Dimension 0.64" L x 0.37" W x 0.35" H (16.3mm x 9.3mm x 8.9mm)
Base Product Number TES 2
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TES2-1223H,TES2-1223H-ND,1951-3062,TES 2-1223H-ND
Standard Package 10
Win Source Part Number 1335866-TES 2-1223H
Ultra Librarian 3D Model Ultra Librarian TES 2-1223H CAD Model

Description

The TES 2-1223H is a DC-DC converter module from Traco Power with a power output of 2 watts.

  • Module Type: Isolated
  • Outputs: Two outputs, with the first output voltage of 15V and the second output voltage of -15V
  • Voltage Isolation: 1.5 kV
  • Application: ITE (Commercial)
  • Features: SCP
  • Mounting Style: Surface Mount
  • Dimensions: 0.64" L x 0.37" W x 0.35" H (16.3mm x 9.3mm x 8.9mm)
  • ROHS3 Compliant: Yes
  • Operating Temperature: -40°C ~ 85°C (With Derating)
